1951 USAF Resolution Test Chart 1951 USAF

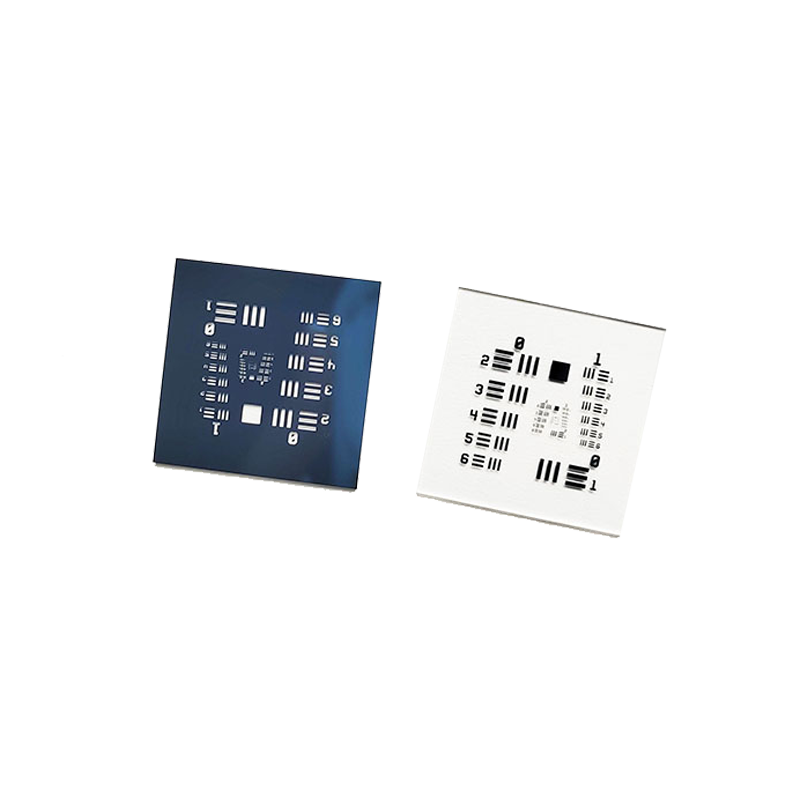

The Optical Resolution Inspection Board, also known as Resolution Force Plate, is an exceptional product that meticulously adheres to the American military standard - MIL-STD-150A contrast specification. Specifically, for the USAF 1951 pattern, each resolution unit has its corresponding group and unit marks. Users can easily obtain the resolution for each unit by looking up the corresponding table. What sets this product apart is its customizability - customers can opt for positive films of varying base materials (dark patterns and light background), as well as negative films (dark background, light pattern) to cater to their specific requirements. With its outstanding features and adaptability, this product is sure to capture attention and pique interest amongst potential users.

Optical Resolution Inspection Board, also known as the Resolution Force Plate, is a product designed based on the U.S Military Standard MIL-STD-150A contrast specification. Specifically, this product adheres to the USAF 1951 pattern, which utilizes different resolution units with corresponding group and unit marks. By consulting the provided table, customers can easily identify the corresponding resolution of each unit. Furthermore, customers have the option to choose positive films of varying base materials in either dark patterns or light backgrounds, as well as negative films with either dark backgrounds or light patterns. In conclusion, the Optical Resolution Inspection Board provides customers with an advanced and precise resolution assessment tool that meets the strict standards of MIL-STD-150A. With its customizable film options, users can tailor their experience to their specific needs and preferences, making this product a must-have for anyone in the industry seeking a reliable and efficient resolution force plate.

An American Standard resolution board, also referred to as an optical resolution test or resolution force board, is a crucial optical test tool widely utilized in the aviation, aerospace, astronomical telescope, machine vision, and optical instrument manufacturing fields. This instrument is designed in accordance with the U.S. Military standard MIL-STD-150A contrast specification to evaluate the imaging quality of optical systems. With its accuracy and precision, it offers an optimal solution for assessing optical performance in an efficient and objective manner. Its application spans across various industries and is a must-have tool for anyone who values optical quality.

The calibration plate is, in essence, a geometric model comprised of a fixed-pitch pattern array. To obtain high-precision measurement and reconstruction results, particularly in machine vision applications, where image measurement and photogrammetry accuracy are of utmost importance, the camera captures an image through a flat plate with a fixed-pitch pattern array, or the calibration plate. Subsequently, the captured image is analyzed using a specialized calibration algorithm to calculate the geometric model. This leads to the effective correction of lens distortion and greatly improves measurement accuracy. The significance of the calibration plate in machine vision applications cannot be overstated.
