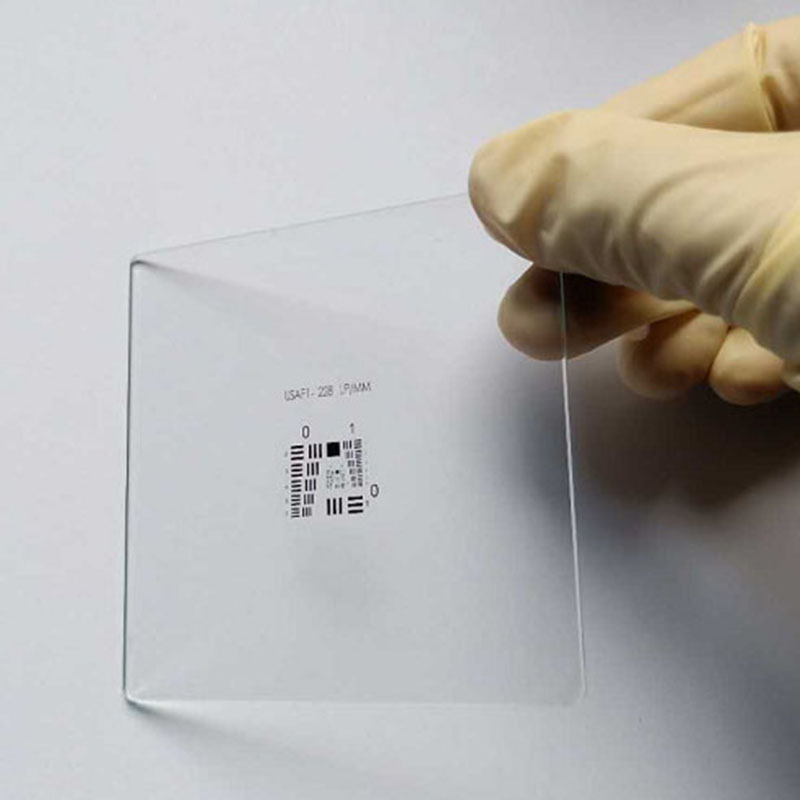

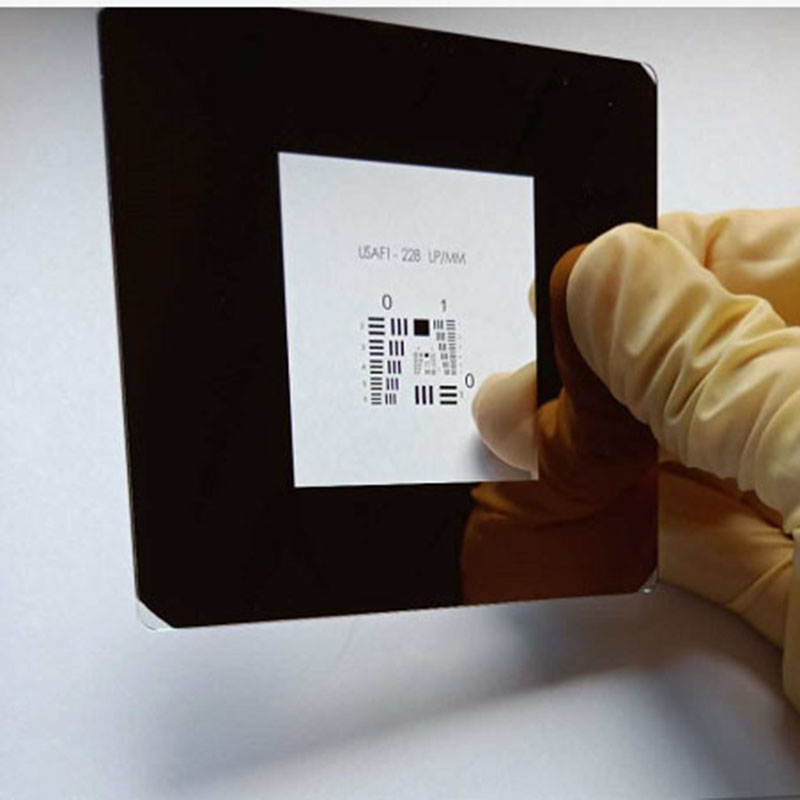

The Optical Resolution Inspection Board, also known as Resolution Force Plate, is an exceptional product that meticulously adheres to the American military standard - MIL-STD-150A contrast specification. Specifically, for the USAF 1951 pattern, each resolution unit has its corresponding group and unit marks. Users can easily obtain the resolution for each unit by looking up the corresponding table. What sets this product apart is its customizability - customers can opt for positive films of varying base materials (dark patterns and light background), as well as negative films (dark background, light pattern) to cater to their specific requirements. With its outstanding features and adaptability, this product is sure to capture attention and pique interest amongst potential users.
Revamped Product Introduction:
Looking for a top-quality resolution inspection board to evaluate the imaging quality of various optical equipment? You've come to the right place! Our Optical Resolution Inspection Board, also known as Resolution Force Plate, is designed in compliance with the strict U.S. military standard MIL-STD-150A contrast specification.

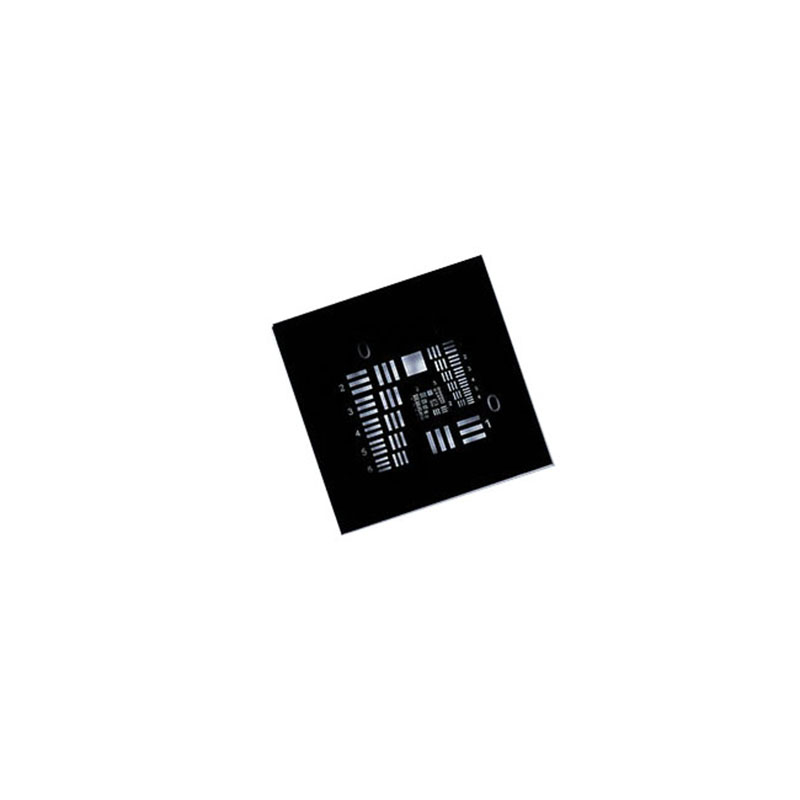

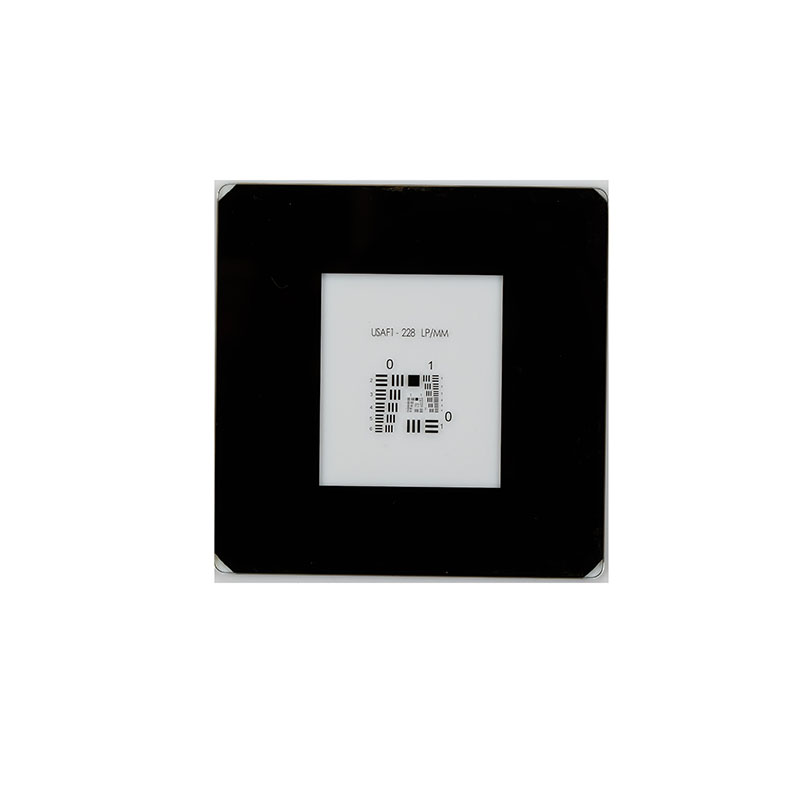

Our resolution board offers a range of different resolution units that use corresponding group and unit marks, with each unit providing its corresponding resolution value. Customers can choose positive films of different base materials according to their specific requirements, such as dark patterns with a light background or negative patterns with a dark background.
Our Quartz Glass Resolution Board is widely used in the aviation, aerospace and astronomical telephoto industries, as well as in other types of lenses and optical components like aerial reconnaissance lenses, camera lenses, microscopes, collimator tubes, and industrial cameras.
So, whether you need to assess the imaging quality of complex optical systems or common optical products used in daily life, our resolution board is perfectly suited for the task. Contact us to learn more about our calibration board types or to place an order today!
For inquiries about Machine Vision Calibration Board, Optical Glass Line Ruler, Photomask or price list, please leave your email to us and we will be in touch within 24 hours.
