All of the materials used to construct this product are made from high-quality soda glass. Calibration plates used in Russia are identifiable by their silver color, while those used in Germany and Austria are blue and the ones used in the United States and Japan are yellow. It should be noted that the color of the calibration plate is a result of the coating process and does not indicate the quality of the calibration board. As a consumer, it is important to understand the value of investing in reliable equipment that is constructed using top-quality materials.
Product Description:

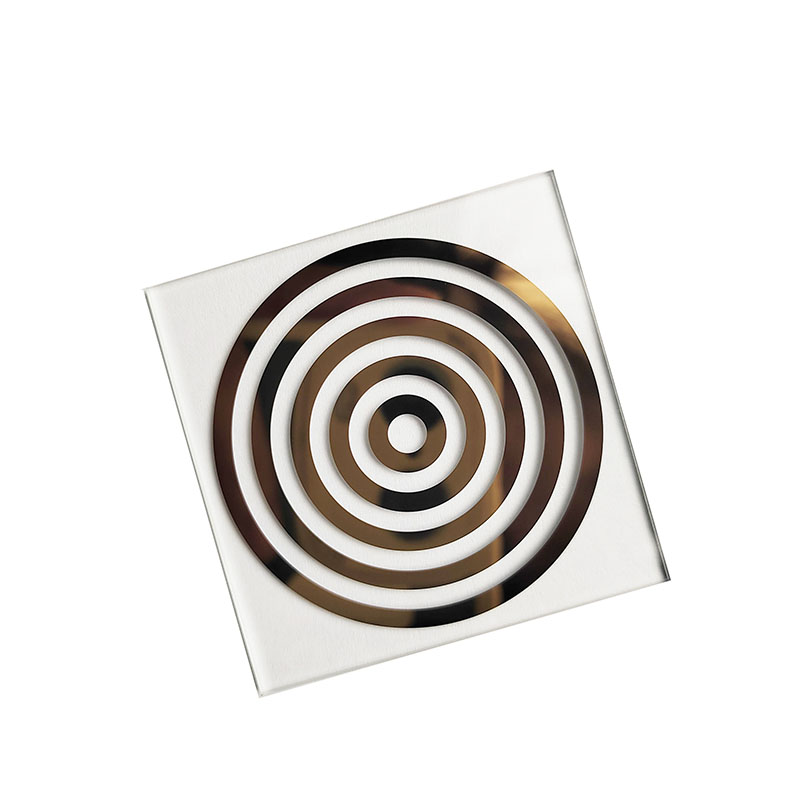

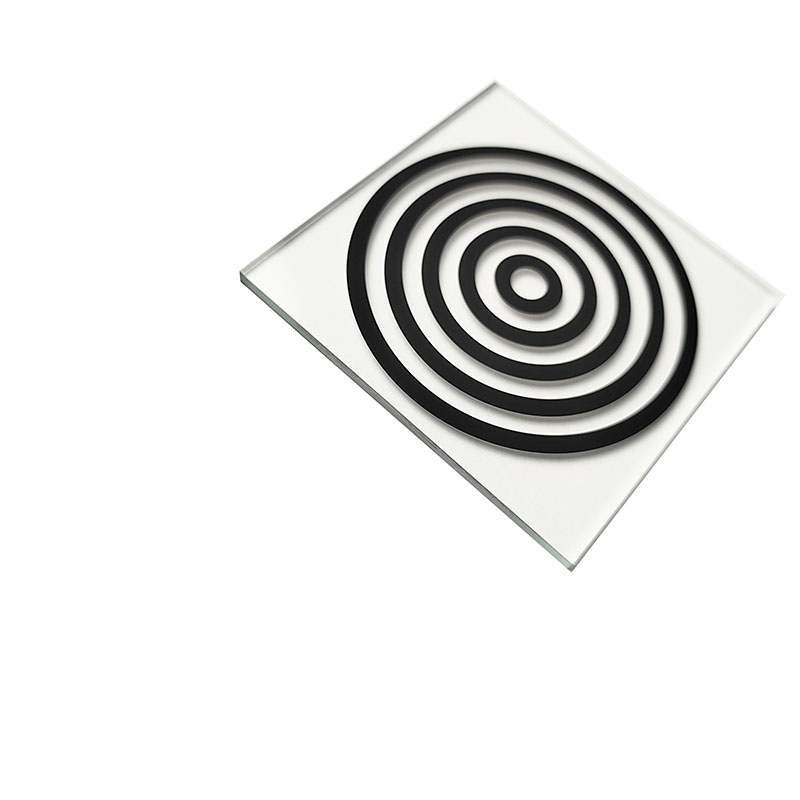

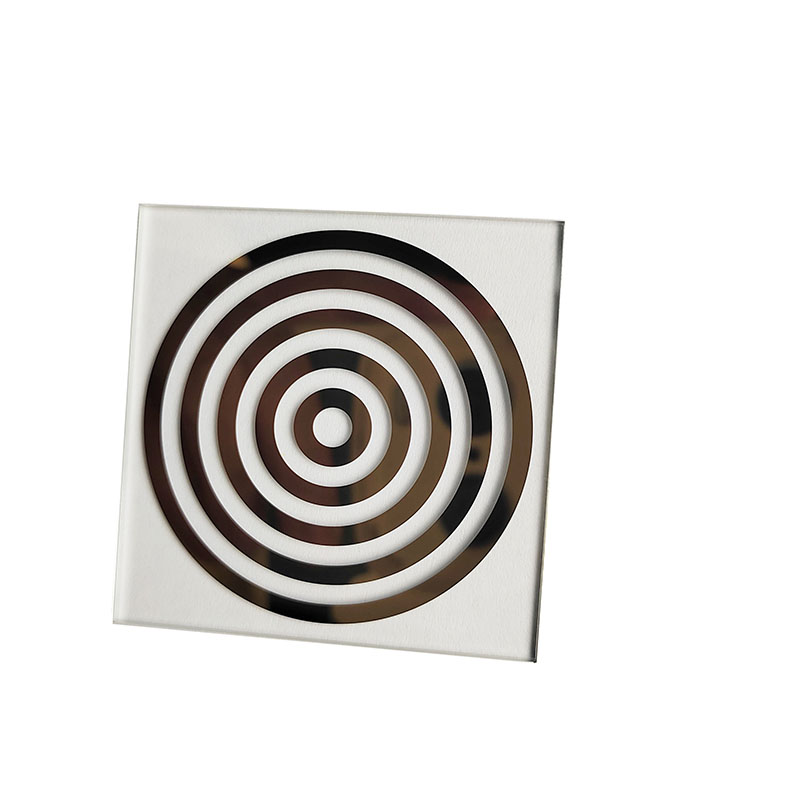

Our product line offers a range of reticles, featuring specific marks that aid in aiming and measuring objects externally. Only a select few of our products are displayed in the table, but feel free to consult our customer service for other available options. The reticle is a flat, optical element placed on the focal plane of the optical system, with its various specific marks enabling increased accuracy in measuring and aiming.

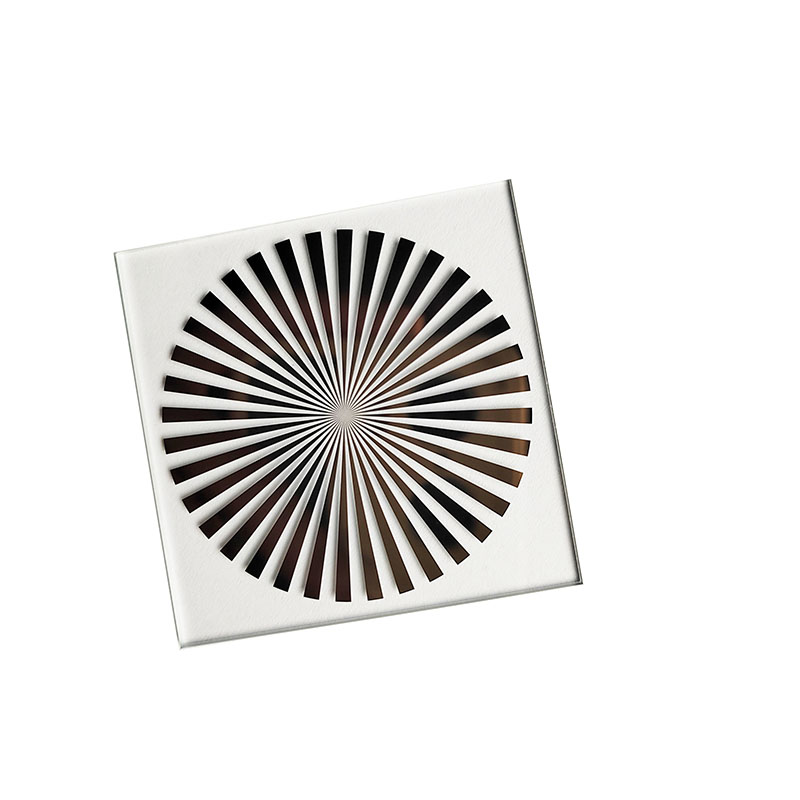

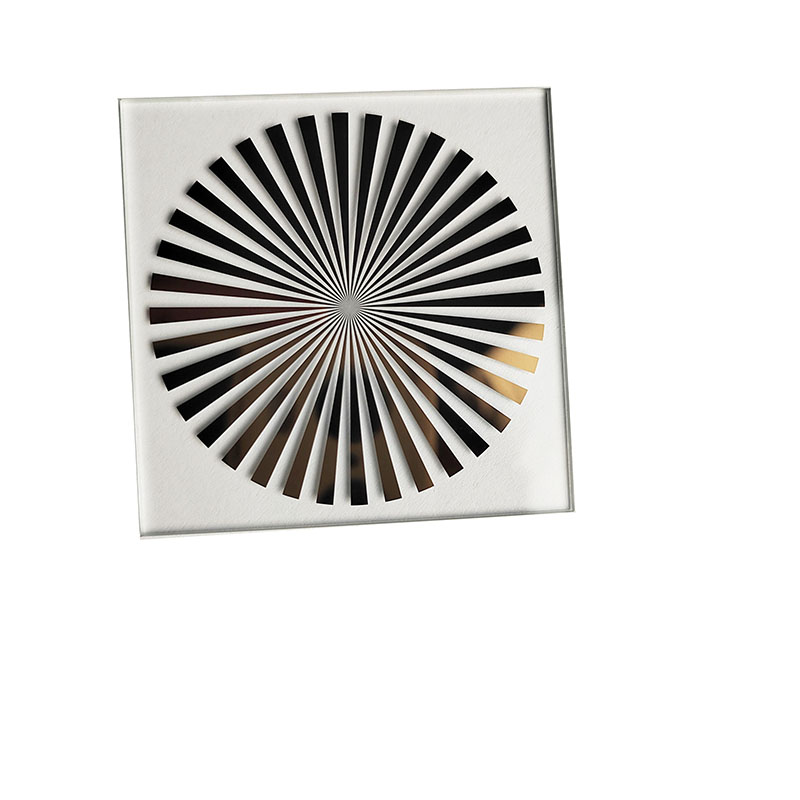

Our fan-shaped target differentiation board products provide a physical display of the color of the membrane layer of the circular target differentiation plate. The standard manufacturing process includes polishing, cleaning and post-coating the glass substrate to ensure firm film layering with minimal defects in post-production.
Our quartz material-based products boast excellent light transmittance and a small expansion coefficient, making it less susceptible to ambient temperature. The material comes in two types- JGS1 and JGS2. While JGS1 is relatively expensive, JGS2 is more affordable but may contain air bubbles inside.
Company Profile:
At Ningbo Zhixing Optical Technology Co., Ltd., we’re dedicated to researching and developing optical devices. Our multidisciplinary team includes Ph.D.s from renowned optoelectronic schools and universities, such as the Changchun Institute of Optics and Mechanics, Zhejiang University, and Beijing Institute of Technology.
Our independent aspheric inspection tools (computational hologram, CGH) provide valuable insights in calibration board development and other customized optical system design needs. We proudly hold intellectual property rights and have broken the monopoly of foreign counterparts in this technology.
We maintain long-term partnerships with numerous reputable enterprises, both locally and globally, in the development of calibration boards and other optical system needs. Contact us today to learn more about our products and services.
For inquiries about Machine Vision Calibration Board, Optical Glass Line Ruler, Photomask or price list, please leave your email to us and we will be in touch within 24 hours.
