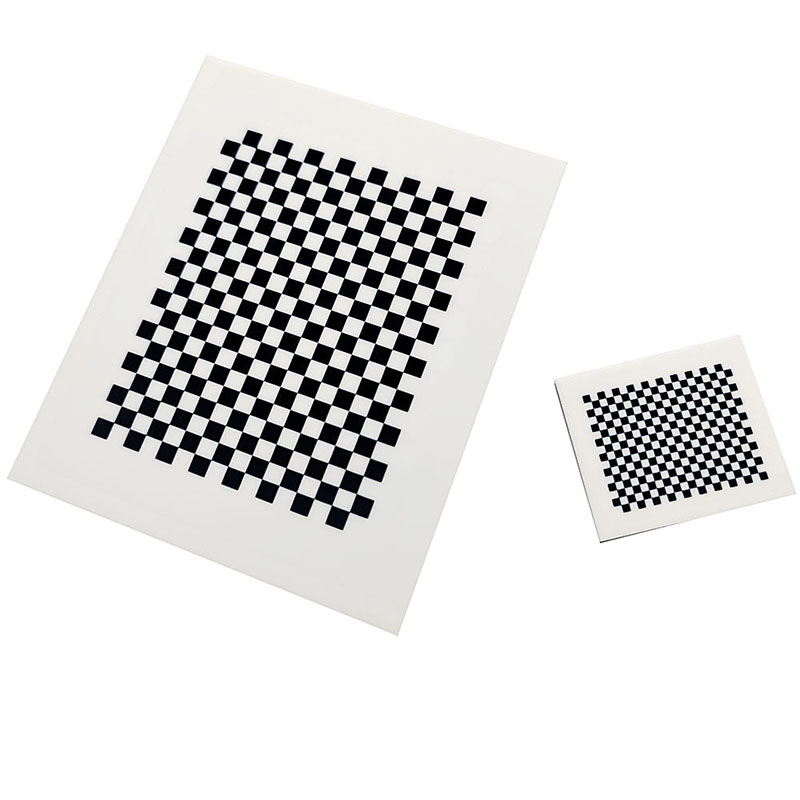

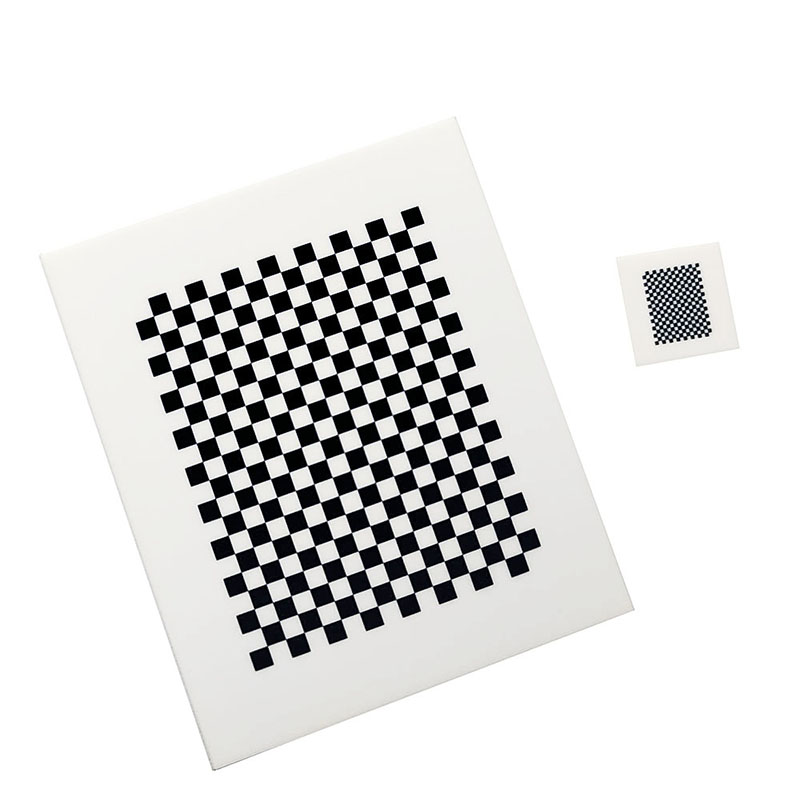

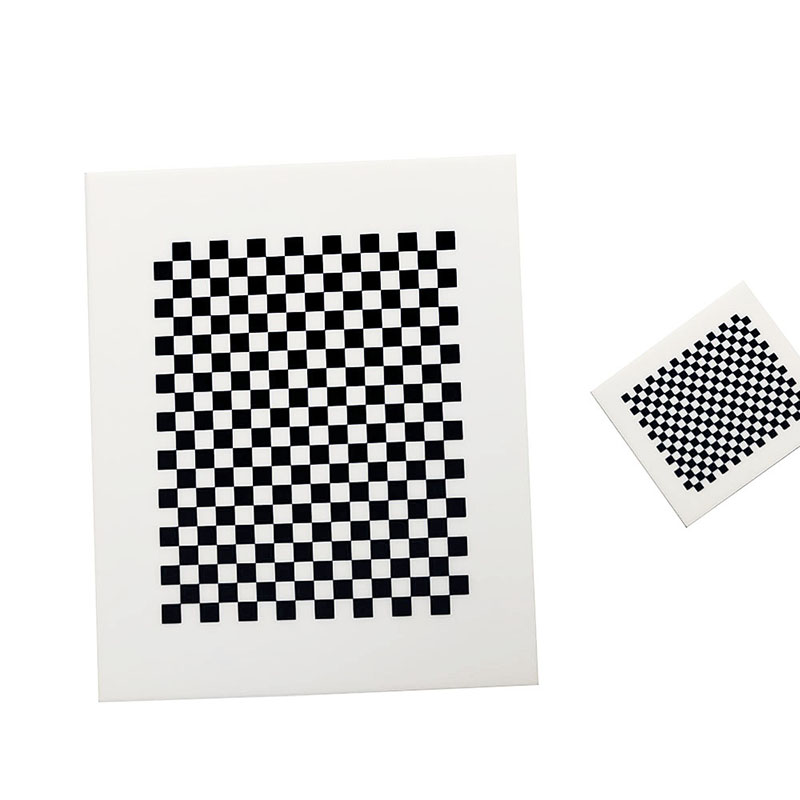

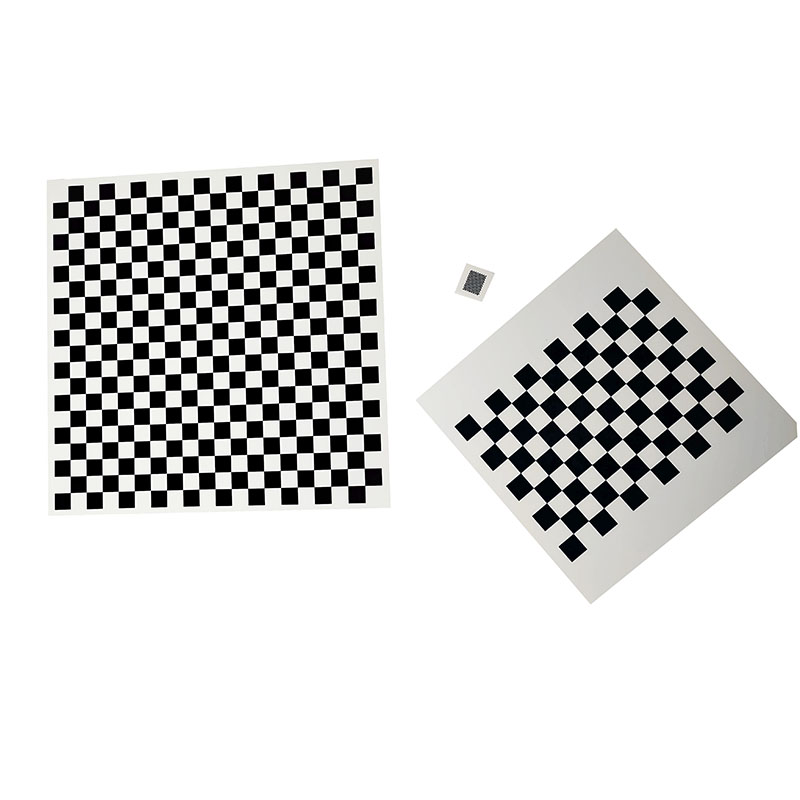

The calibration plate serves as a critical component in machine vision applications, enabling high-precision measurement and reconstruction results. In essence, the calibration plate is a geometric model consisting of a fixed spacing pattern array. Using this pattern, the camera captures an image through a flat plate, which is then processed through a calibration algorithm to obtain a precise geometric model of the captured image. Through this process, the lens distortion is effectively corrected, leading to improved accuracy in image measurement and photogrammetry. This technology enhances the overall quality of machine vision applications, providing reliable and precise results. Overall, the use of the calibration plate can significantly benefit industries that rely on machine vision, such as those in manufacturing and robotics.
Product Feature:
Only select products are displayed in the table. If you require additional products, kindly consult our customer service team.
Overview:
Essential Details:
Warranty: 1 year
Customized Support: OEM, ODM
Place of Origin: Zhejiang, China
Brand Name: ZHUYU
Model Number: OpenCV30mm
Product Name: Stage Calibration Slide Glass
Weight: 30g
Application: Camera Image Calibration
Membrane Color: Dark Blue
Accuracy: ±0.001mm
Function: Calibration
Size: 30*24mm
Square Side Length: 1.5mm
Number of Lattices: 20*16
Package: Plastic Box
Introduction to Calibration Plate material:
Calibration plates can be made of different materials such as glass, ceramics, honeycomb aluminum, pure aluminum, film, and acrylic. Each material has unique characteristics, and the calibration plate used should be suitable for different environments. For large-sized plates that require frequent movement, pure aluminum and glass are unsuitable. Honeycomb aluminum is recommended for larger plates as it is lighter and still easy to move with a larger size. For small-sized plates that require high precision, glass or ceramics is the best choice as their accuracy can reach ± 0.0005-0.001mm. Speak with our business manager for further details.
Exhibition Photos:
Customer FAQ:
1. Can the product be customized?
- Yes.
2. How long will it take for delivery?
- Generally, samples can be produced and shipped within 7-8 working days after confirming payment and drawings. For more details, consult with our business manager.
3. Can the product be delivered to a designated warehouse for free?
- Yes, the goods can be delivered to a designated warehouse in China free of charge. Additional expenses incurred can be negotiated based on the goods' weight.
4. Can you help me with the drawings for free?
- Yes, we can assist with the drawings for free. However, confirming the drawings are processed with complete accuracy is the customer's responsibility.
