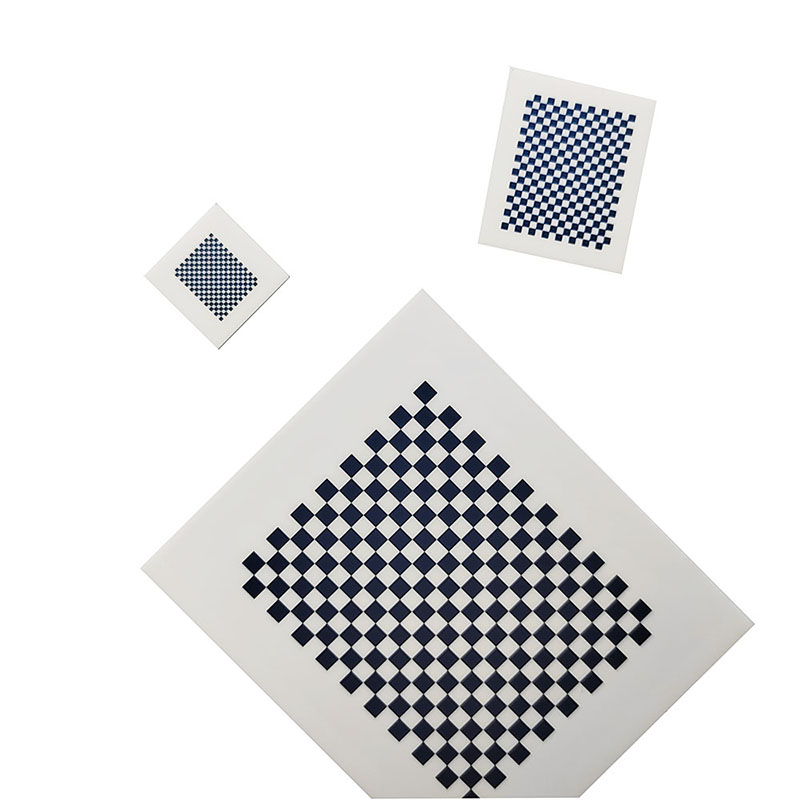

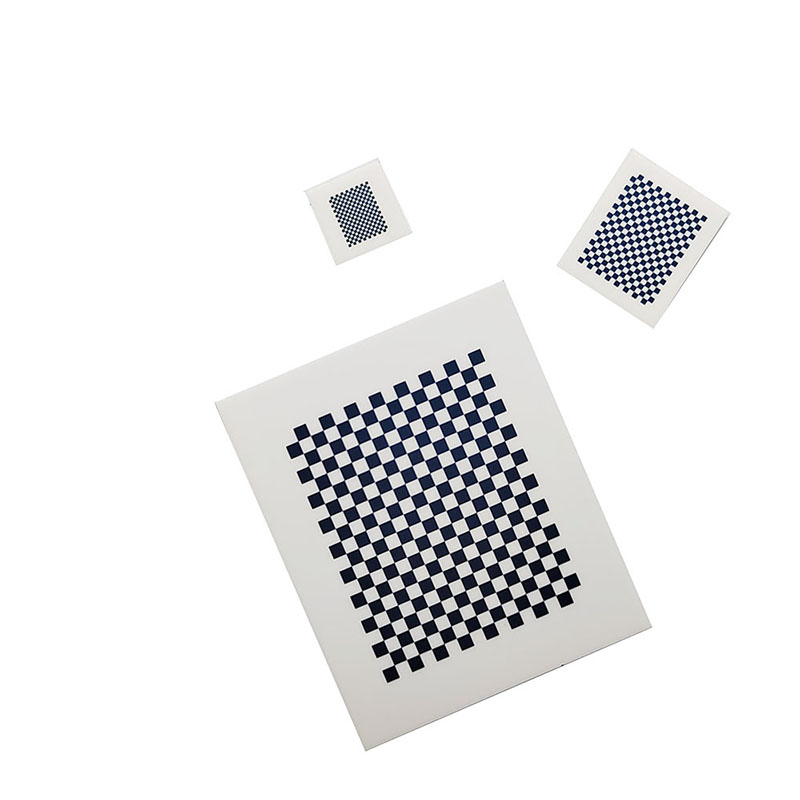

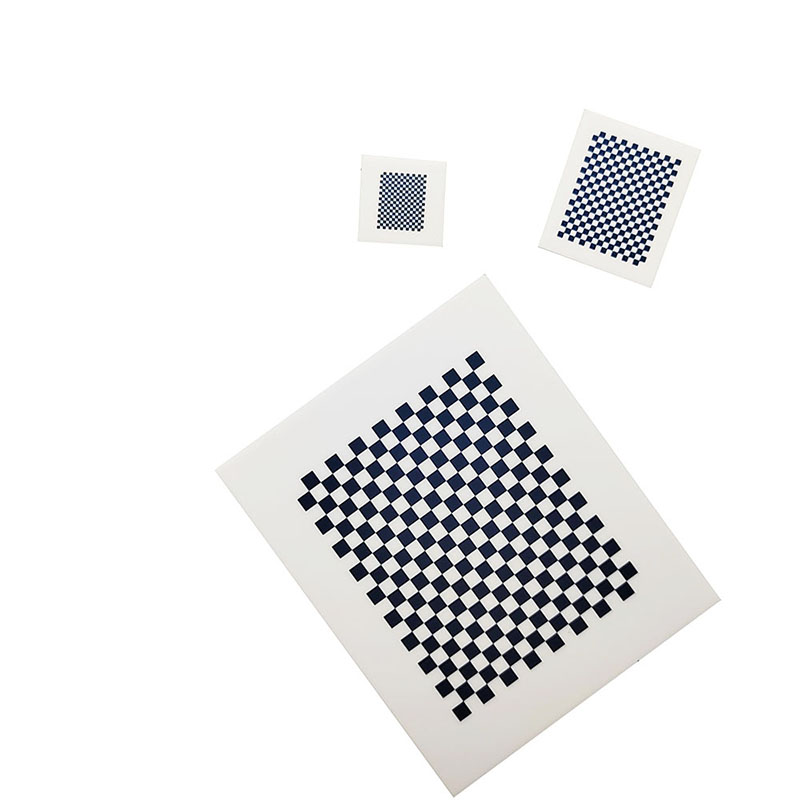

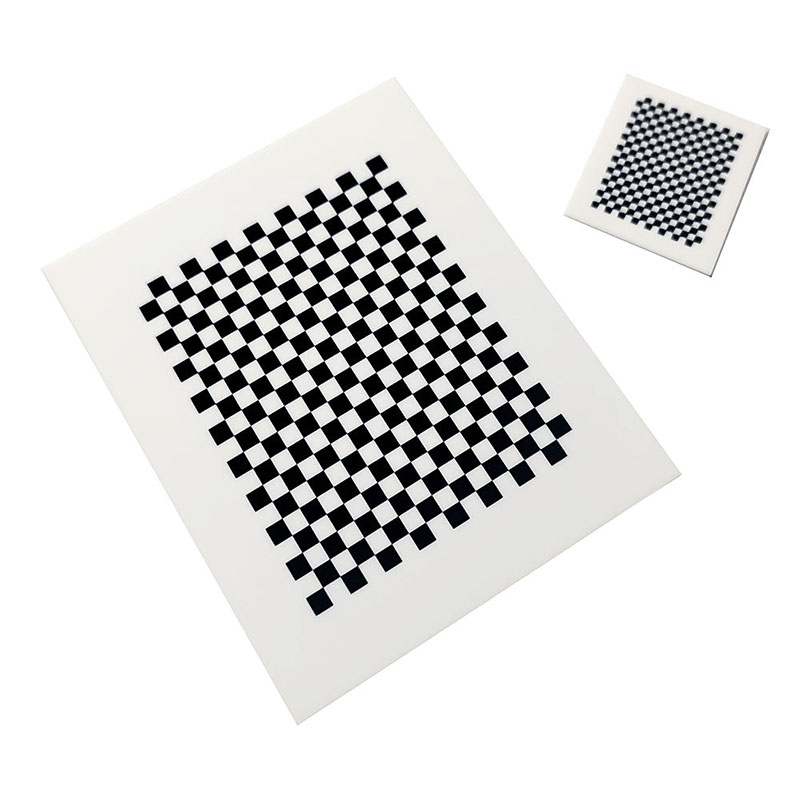

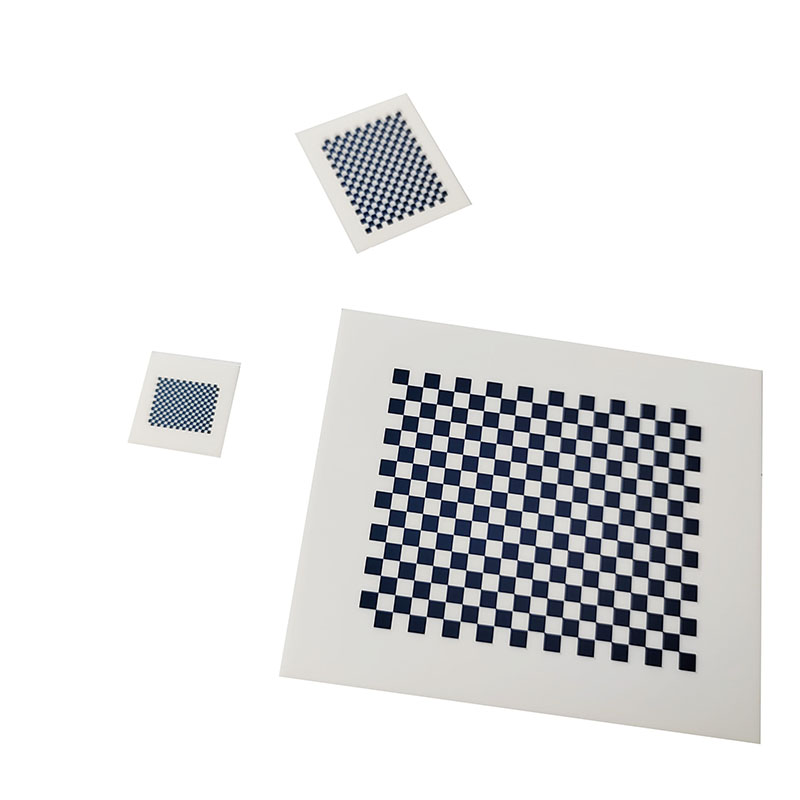

The calibration plate is an essential component in machine vision applications, as it acts as a precise geometric model containing a fixed spacing pattern array. By capturing an image through the lens of a camera utilizing the calibration plate, advanced software algorithms can calculate an accurate geometric model of the photograph, thereby improving measurement accuracy and reconstruction results. This reliable and proven approach effectively reduces lens distortion, resulting in superior image measurement and photogrammetry outcomes. With the application of a calibration plate, your machine vision system can achieve unparalleled results in terms of precision and accuracy.
Product Description:
Are you looking for a way to improve the accuracy of your machine vision system? Look no further than our high-precision calibration board, designed to enhance the performance of your system in just two simple steps.
First, our professional calibration algorithm uses the image collected by the calibration plate to measure and evaluate error values at any position within your field of vision. This allows the machine vision system to accurately assess its detection accuracy levels.
The second step involves correcting and compensating for error images using a range of precision image algorithms, such as image translation, rotation, interpolation, reconstruction, and brightness compensation. This process ensures that your machine vision system can more accurately reflect the actual object being measured, allowing for precision measurement and detection.
Our calibration plate is essential for image measurement, photogrammetry, 3D reconstruction, and other applications. It corrects lens distortion, determines the conversion relationship between physical dimensions and pixels, and establishes the geometric model of camera imaging.
Choosing the most appropriate calibration plate is easy. Simply look at the corresponding table on our product details page, or consult with our customer service team for custom sizing options. We can even customize plates based on your specific needs.
Don't let inaccurate measurements hold you back. Invest in our high-quality calibration board today and take your machine vision system to the next level. Delivery options to your designated warehouse or port are also available upon request.
FAQs:
1. How do I choose the most suitable calibration plate?
A: You can choose a plate that is one third to twice the size of your vision. Our standard sized plates offer the best value for your investment.
2. What are the sizes of your standard products?
A: Please refer to the corresponding table on our product details page for reference. Contact our customer service team or business manager for more size options.
3. Can I customize a calibration board if the standard sizes and materials do not meet my needs?
A: Yes, please provide us with your custom drawings in CAD or CDR format, or hand drawn sketches. We will recommend the most suitable calibration plate based on your specifications.
4. Can you deliver the goods to my designated warehouse?
A: Yes, we can arrange delivery to your specified location.
5. Can you deliver the goods to the port?
A: Yes, we offer delivery to ports as well.
For inquiries about Machine Vision Calibration Board, Optical Glass Line Ruler, Photomask or price list, please leave your email to us and we will be in touch within 24 hours.
