The calibration plate is a powerful tool designed to improve the accuracy of image measurement and photogrammetry in machine vision applications. Essentially, it is a geometric model that features a fixed spacing pattern array. By capturing an image through a flat plate with this pattern array (the calibration plate), the camera can then use sophisticated algorithms to calculate the calibration and obtain a highly precise geometric model of the image. This process effectively corrects for lens distortion and provides a range of high-quality measurement and reconstruction results, significantly improving the accuracy of image-based analysis in a variety of industrial and scientific contexts. Overall, the calibration plate represents an essential asset for professionals looking to boost the accuracy of their machine vision applications and achieve outstanding results with ease.
Product Introduction:
Feature: The table displays only a selection of our available products. For other products, please consult our customer service.
Function of Calibration Plate: The Calibration Plate is a high-precision calibration tool used in research units and vision fields. It corrects lens distortion, determines the conversion relationship between physical dimensions and pixels, and establishes the geometric model of camera imaging. It is primarily used for 3D image measurement, 3D reverse engineering, stereo matching, 3D reconstruction and more.
Application Area: The Zhixing Optical Glass series and Ceramic series Calibration Plates are commonly used calibration tools by college experiments, research and development projects, machine vision integrators, product calibration, and other customer groups.

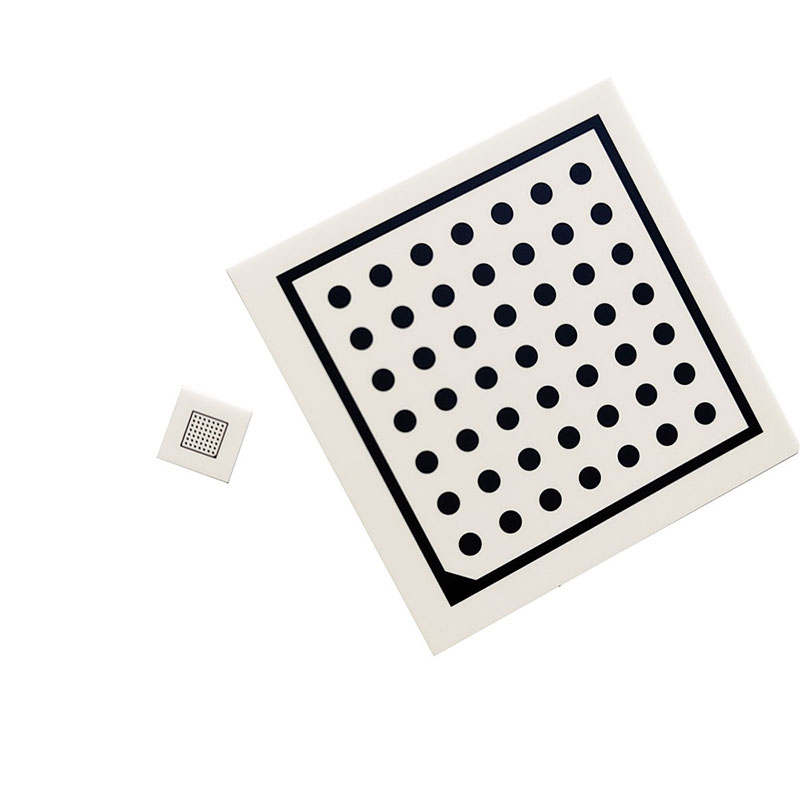

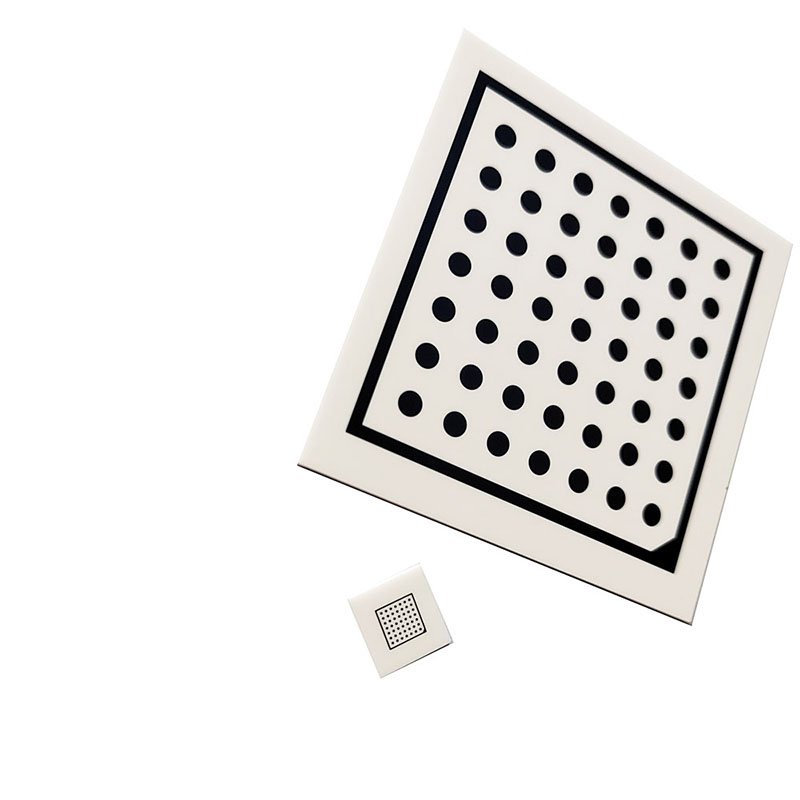

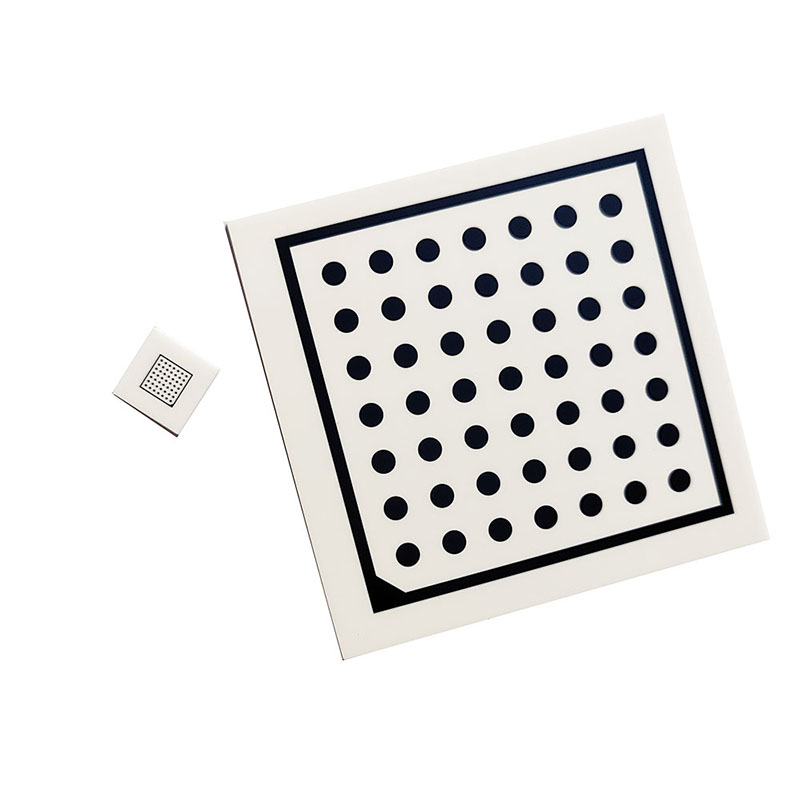

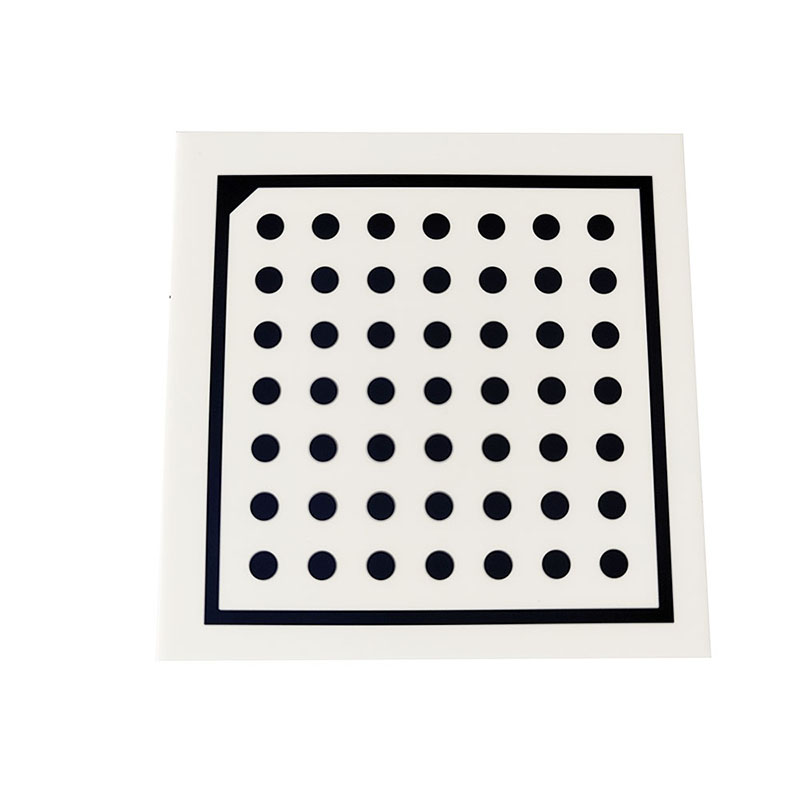

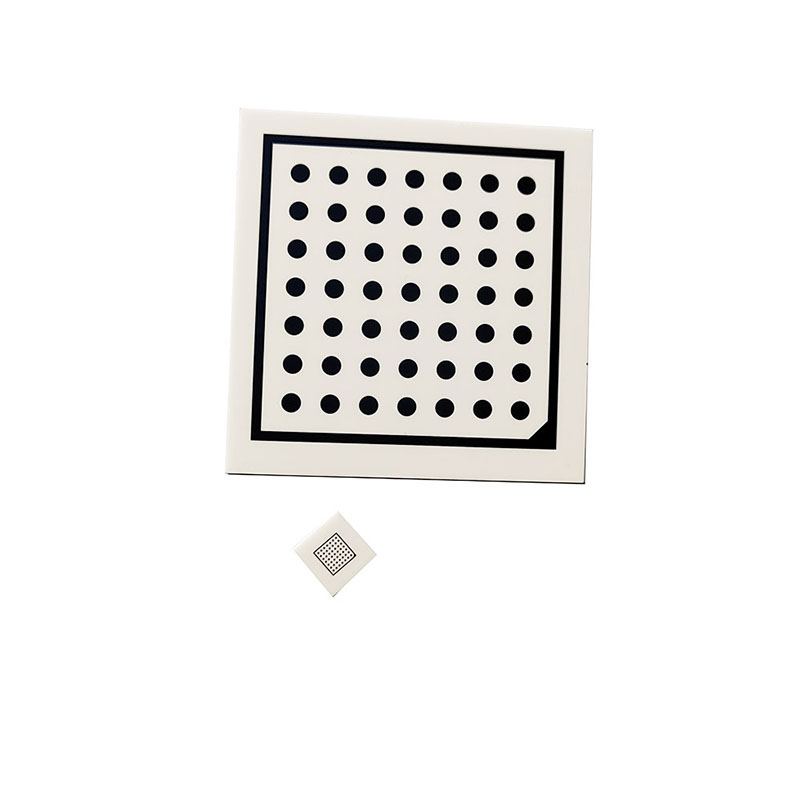

Photo Exhibition: See pictures of our Precision Calibration Plate in action.
Customer FAQ:
1. Can you customize it? - Yes, we can customize our Calibration Plates to meet your specific needs.
2. How long is delivery? - Samples can be made and sent to you within 7-8 working days after payment confirmation. Details about your order can be discussed with our friendly business manager.
3. Can you deliver to a specific warehouse for free? - Goods can be delivered free of charge to a designated warehouse in China. Expenses incurred can be negotiated based on the weight of the goods.
Can you help me draw for free? - If you have your own drawings, we can work with them directly. If not, we would be happy to provide this service for you free of charge. We will only process drawings after you confirm them to avoid any possible errors.
We strive to provide high-quality, professional products and services. Contact us today to learn more about our Calibration Plates and how they can benefit your industry.
For inquiries about Machine Vision Calibration Board, Optical Glass Line Ruler, Photomask or price list, please leave your email to us and we will be in touch within 24 hours.
