The calibration plate serves as a crucial tool in machine vision applications, providing a precise and efficient method for correcting lens distortion and enhancing image measurement accuracy. Essentially, it is a geometric model containing a fixed spacing pattern array that aids in obtaining high-precision measurement and reconstruction results. When an image is captured through the calibration plate, the corresponding calibration algorithm is calculated, allowing for the derivation of the geometric model of the captured image. This procedure enables image processing procedures to be more accurate and reliable. Overall, the calibration plate is an indispensable component in any machine vision setup, ensuring optimal results in image analysis and measurement.
Product Description:

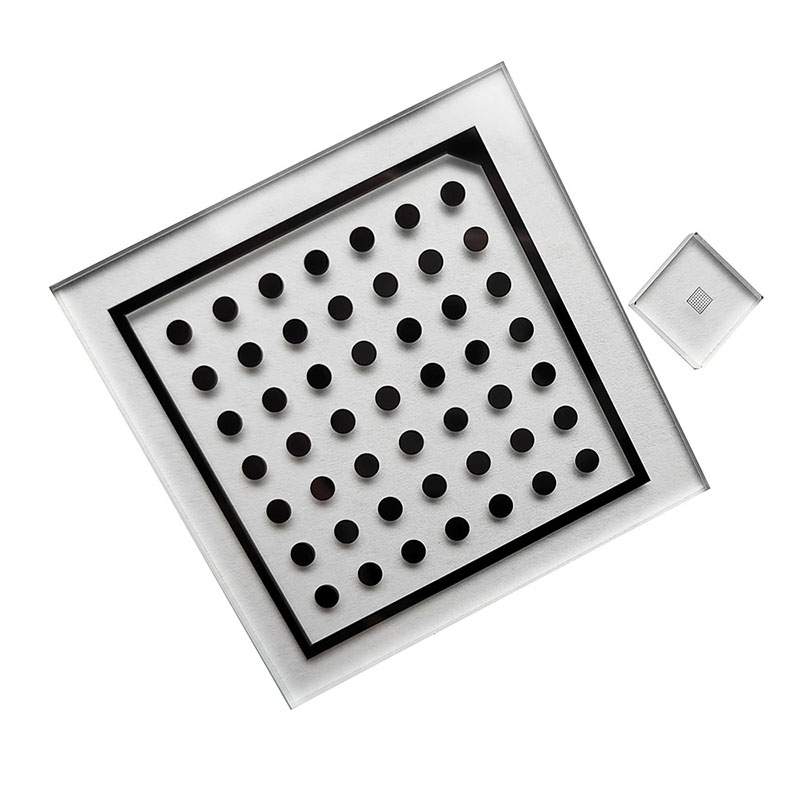

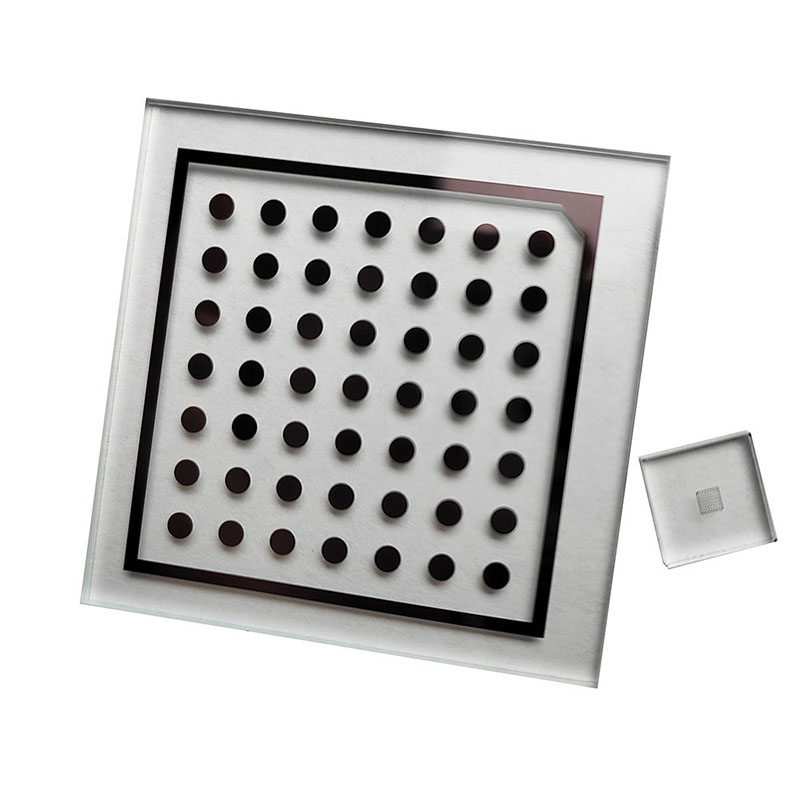

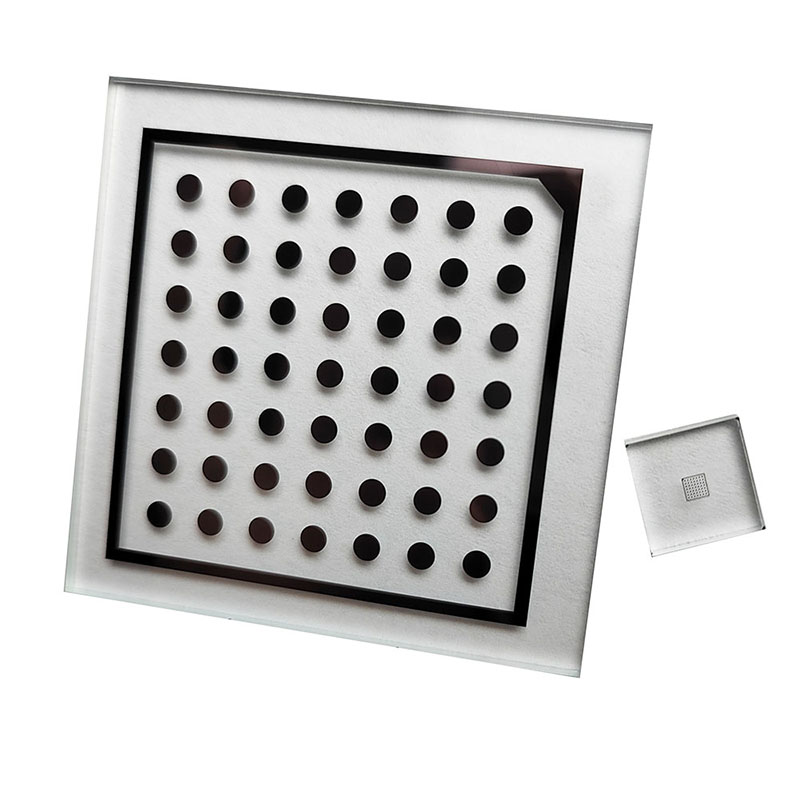

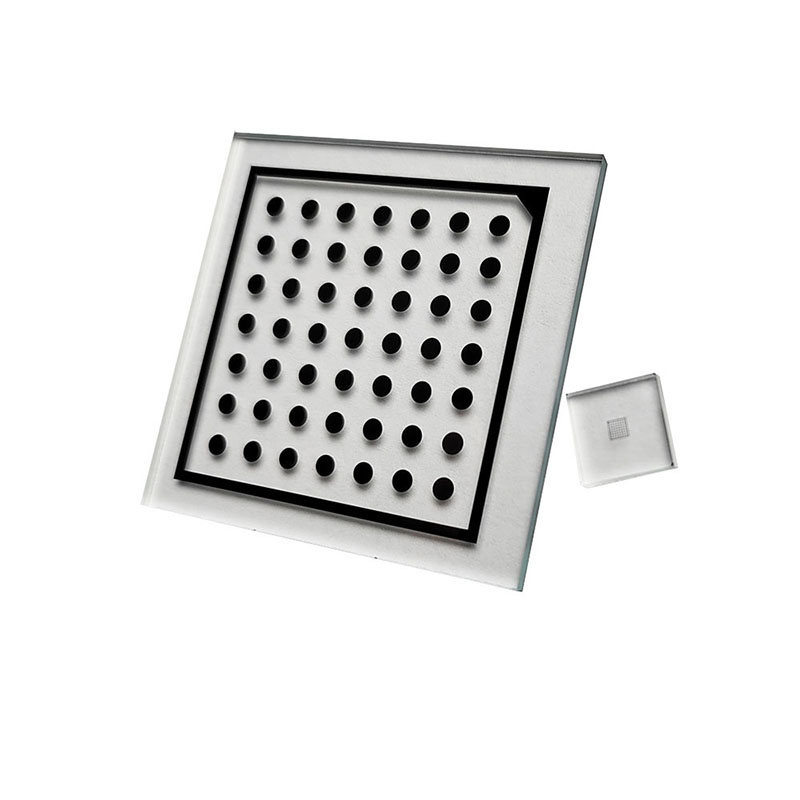

Looking for a reliable calibration plate for your machine vision system? Look no further than our lattice glass calibration plate. Made with precision and accuracy in mind, this standard glass machine vision image calibration board is an essential tool for ensuring that your machine vision system is calibrated perfectly.
With a number of dots measuring 7 x 7 and a dot diameter of 1.25mm, our calibration plate offers an accuracy of ±0.001mm. Its small size of 20 x 20mm and weight of just 20g make it easy to handle and maneuver.
At ZHUYU, we pride ourselves on providing customized support to meet the needs of our customers. Our calibration plate can be easily customized through OEM and ODM services, with the option to choose the perfect size for your specific needs. We also offer a range of membrane colors, including dark blue.
Customer FAQ:
1. Can you help me choose the right size of calibration plate?
Answer: Our recommendation is that the calibration plate should be between 1/3 and 2 times the field of vision. However, the correct size is ultimately determined by the specific use case of the customer.
2. Is it possible to customize the size?
Answer: Yes, we offer customization for the calibration plate through the provision of CAD/CDR or hand-drawn drawings, and we also provide free drawing services.
3. How long does customization take?
Answer: Customization time is usually between 7-8 working days after payment and the confirmation of drawings. Arrival times will vary depending on the country and region.
4. What payment methods do you accept?
Answer: We have a global collection account that supports multiple currencies, allowing for convenient and secure payment options.
