Ceramics Calibration Board

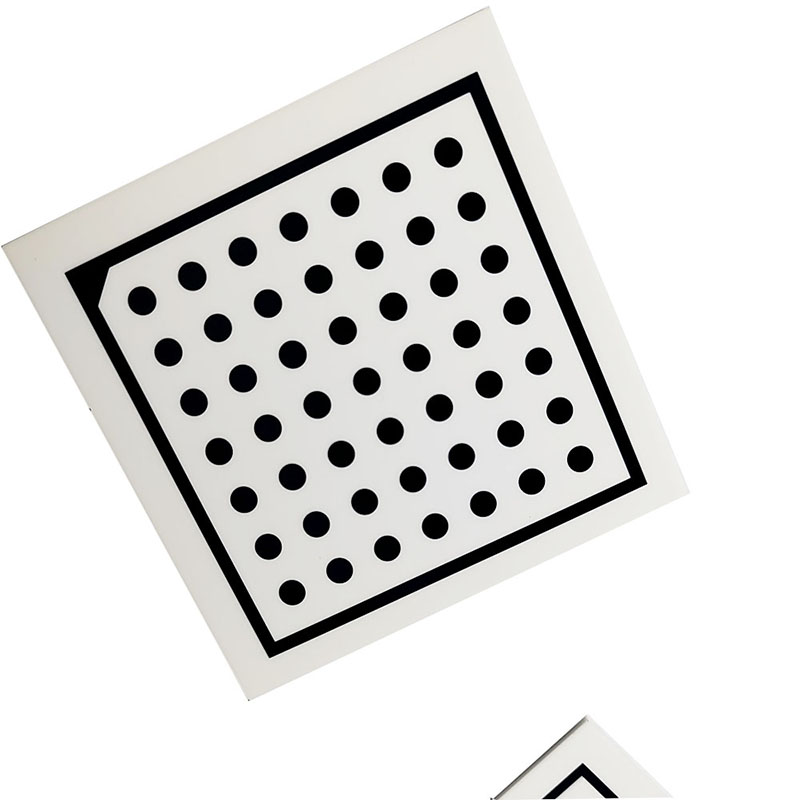

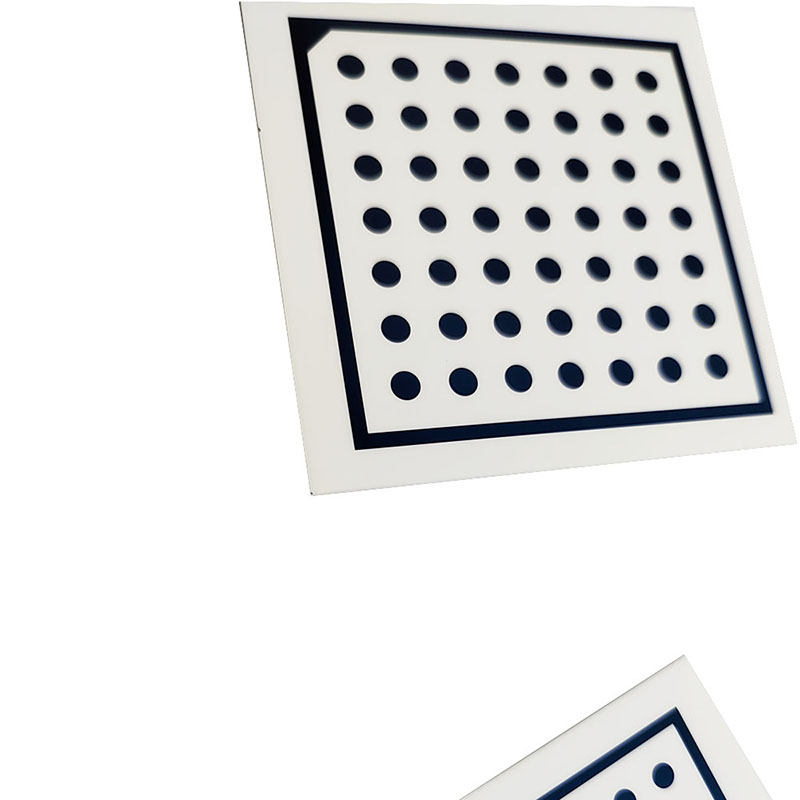

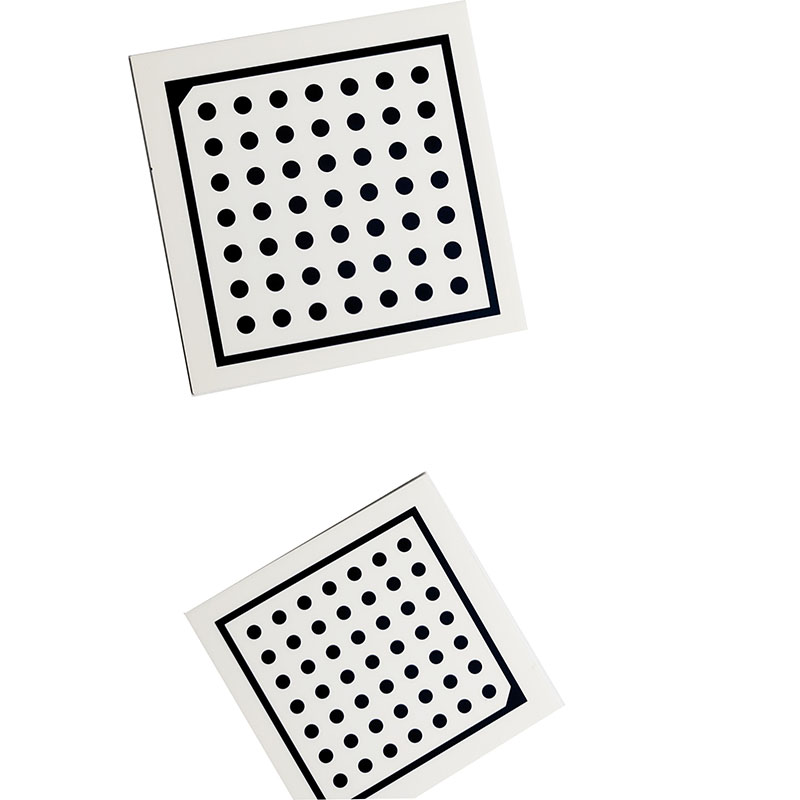

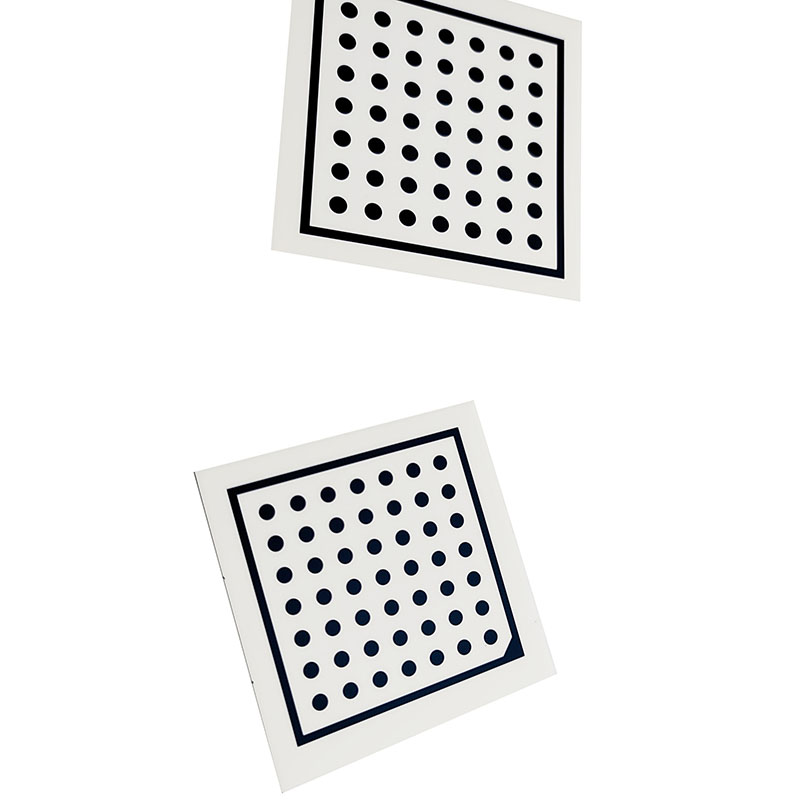

Here is a revised version of the product introduction: Introducing Halcon10mm, the circle point calibration plate that guarantees accuracy and precision in photogrammetry. Designed and manufactured by ZHUYU in China's Zhejiang Province, this compact and lightweight (10g) calibration plate boasts a pattern size of 8.125mm and a diameter of 0.625mm with 7x7 dots. A dark blue membrane color ensures optimal visibility, while the center distance of 1.25mm and the ±1um accuracy make it an essential tool for any photogrammetric application. But how does one use the Halcon10mm calibration plate? The first step is to determine the size and placement position of the camera calibration plate during shooting. While using A3 or A4 drawings to make eight, nine, or ten rows of blocks, there are no specific requirements for the size or the number of corners. However, the higher the accuracy of the calibration board, the better the calibration results. To extract corners when the calibration plate is not placed in the shooting plane, simply ensure that the calibration plate is fully visible in the image. The distance between the lens and the calibration plate is not restricted, allowing for maximum flexibility. While it is worth noting that camera calibration does not directly impact the clarity of pictures, achieving optimal calibration results ensure accuracy and precision in photogrammetry. With Halcon10mm, excellent calibration results can be obtained with just five images, although more can lead to even better outcomes. At ZHUYU, we pride ourselves on delivering the best products for our customers, and our Halcon10mm calibration plate is no exception. With customized support for OEM and ODM needs, we are committed to providing the best solutions for photogrammetry professionals worldwide.
