Glass Target Camera Calibration

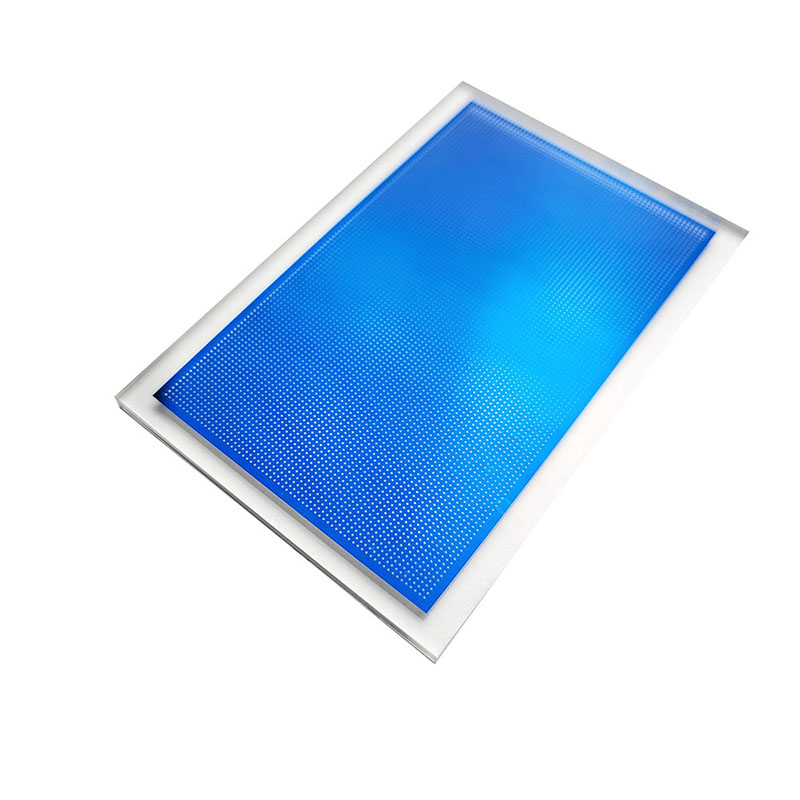

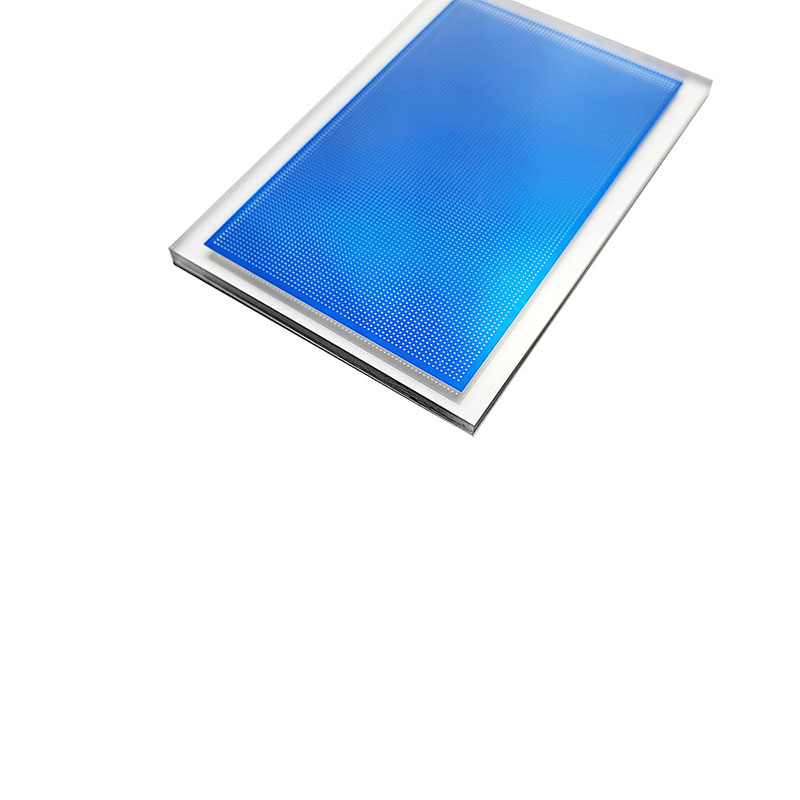

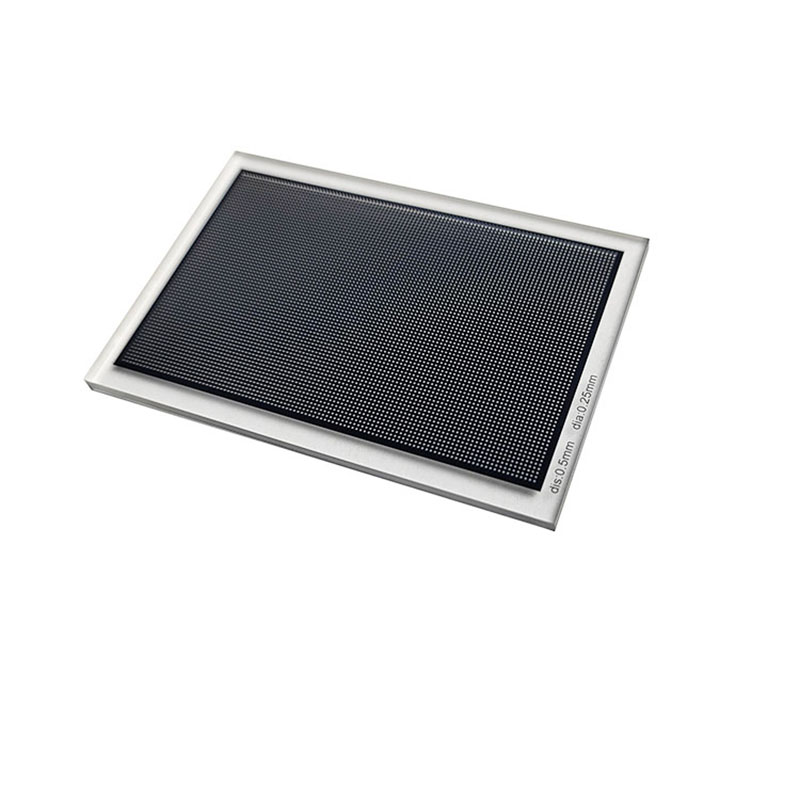

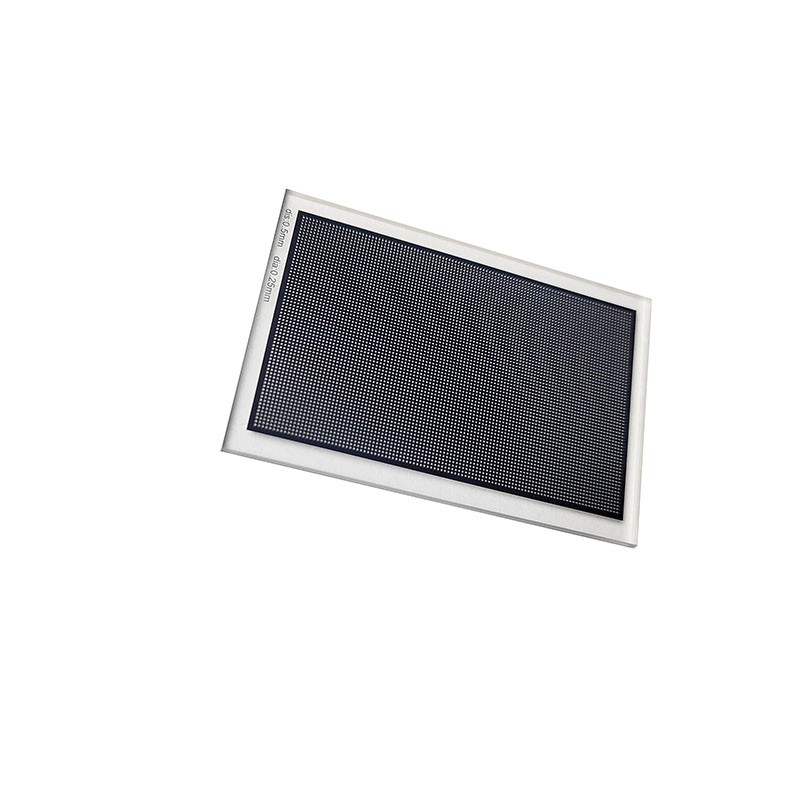

Product Introduction: Introducing the machine vision calibration board, a high-precision tool for camera calibration. As a leading manufacturer of optical alignment plates, ZHUYU is proud to offer a product that ensures the optimal performance of your optical system. Our calibration board is designed to achieve ±0.001mm positioning accuracy and to restore the one-to-one correspondence between 3D space and 2D space of the camera model. Key Features: - Compatible with most image processing algorithms - Supports classic chessboard calibration board and solid circular array calibration board - Designed to integrate with the Halcon and ActiveVision Tools machine vision software development packages by MVtech, Germany - Comes with customized support for OEM, ODM, and OBM - Backed by a 1-year warranty Function: The machine vision calibration board performs two main functions: to obtain the distortion coefficient caused by lens imaging and to obtain the corresponding relationship between the spatial coordinate system and the image coordinate system. This ensures optimal optical performance and high-precision imaging. Specifications: Our calibration board is made of high-quality glass, is transparent in color, and comes in a package that includes 1 piece per box. It has a customized logo and a brand name of ZHUYU. The board has a 7x7 dot matrix with a specification of 60 * 60mm. The outer border length is 60mm * 60mm, while the inner border length is 58.125mm * 58.125mm. The black border line consists of a dot radius of 1.875 (diameter is 3.75) and the black dot diameter is 3.75mm. The center distance between dots is 7.50mm, and the corner has a length of a center margin (7.50mm) that is indented inward from the black outer border. Conclusion: ZHUYU's machine vision calibration board is the perfect tool for companies looking to optimize their optical performance and increase their imaging accuracy. With a focus on providing superior quality and customized support, ZHUYU guarantees customer satisfaction. Please contact us for more information or inquiries about our optical alignment plate products.
