The calibration plate serves as a geometric model designed with a fixed spacing pattern array. This important tool enables high-precision measurement and reconstruction results in machine vision applications, by correcting lens distortion and enhancing the accuracy of image measurement. The process begins with capturing an image via a camera, which then analyses it through the flat calibration plate and calculates the calibration algorithm. This results in the acquisition of an accurate geometric model of the captured image. The calibration plate is an indispensable accessory for any machine vision system, offering exceptional performance and reliability in image processing.
Product Introduction:

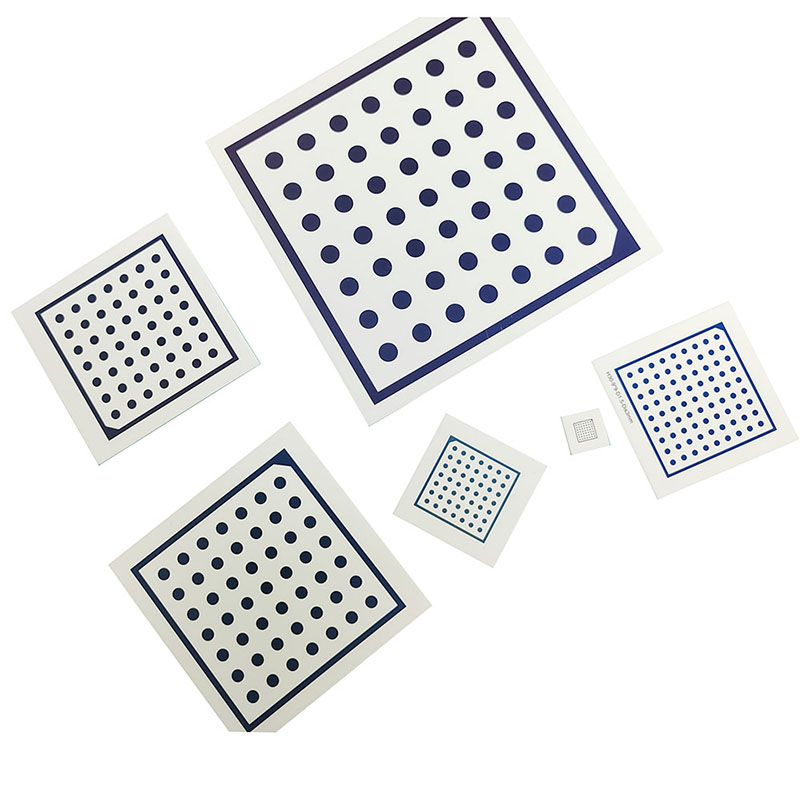

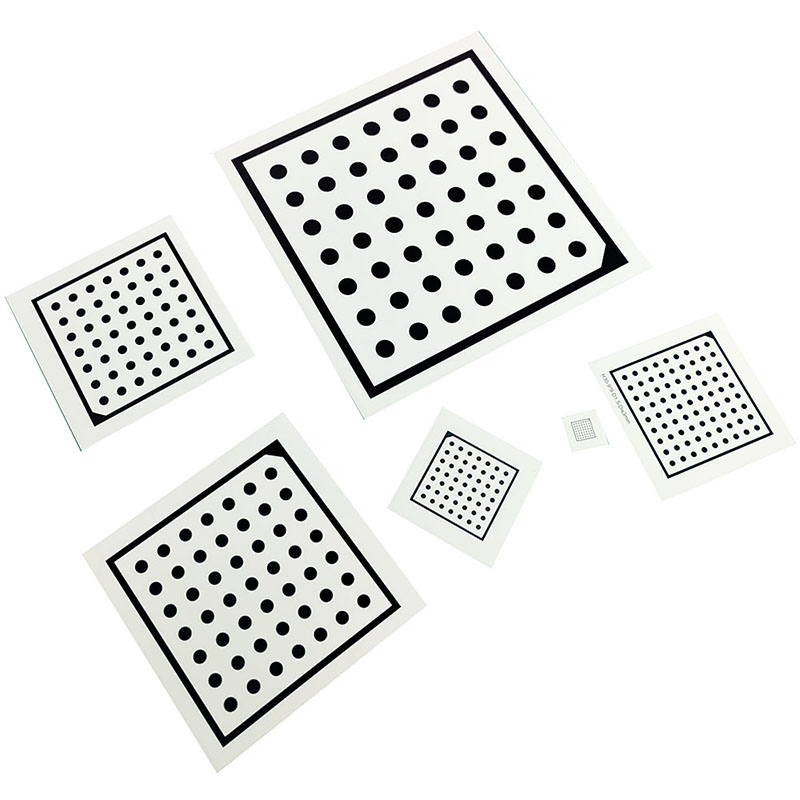

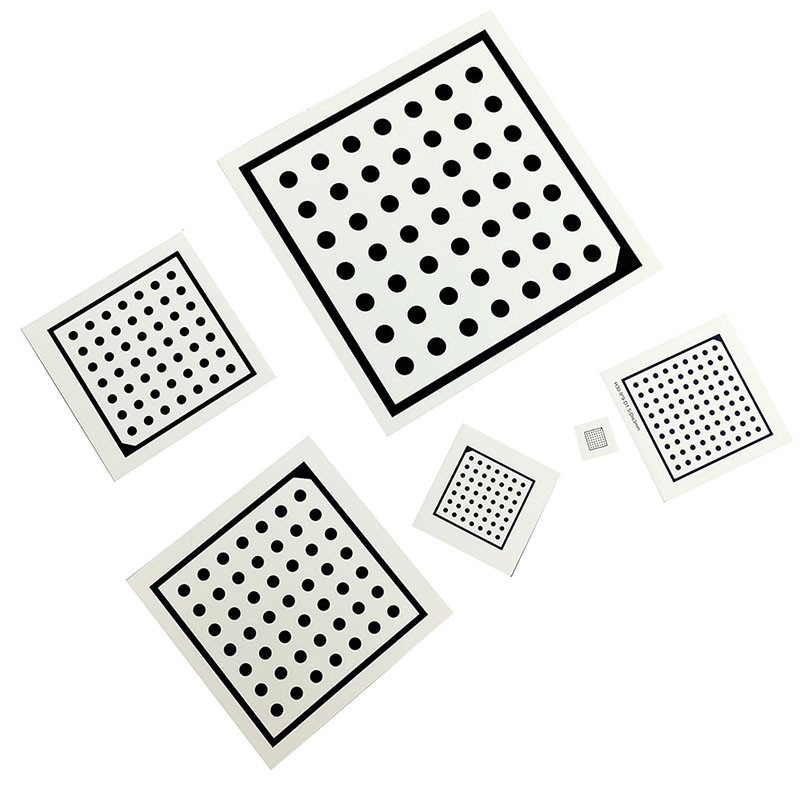

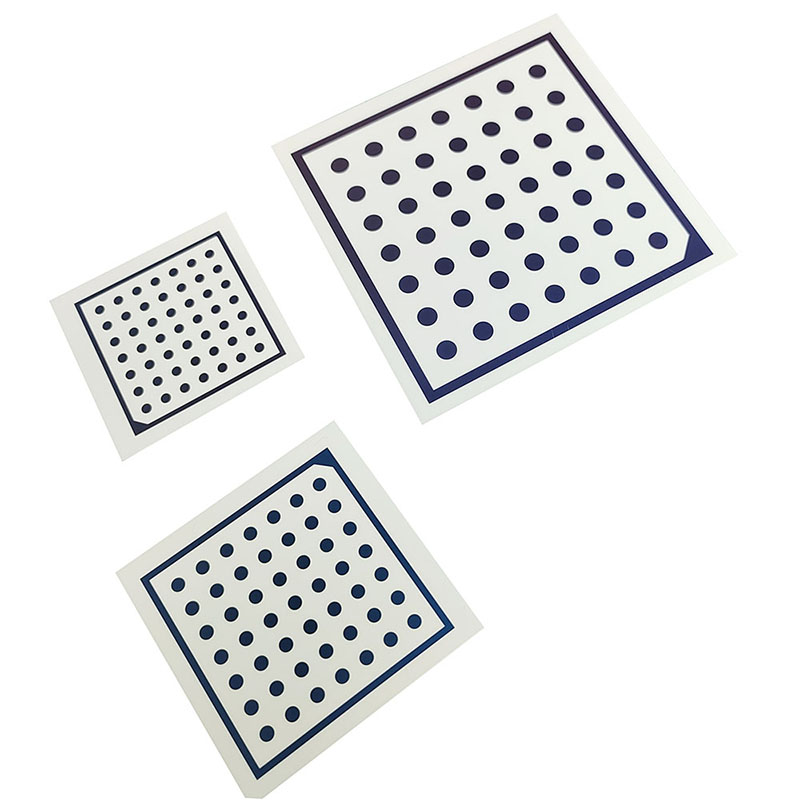

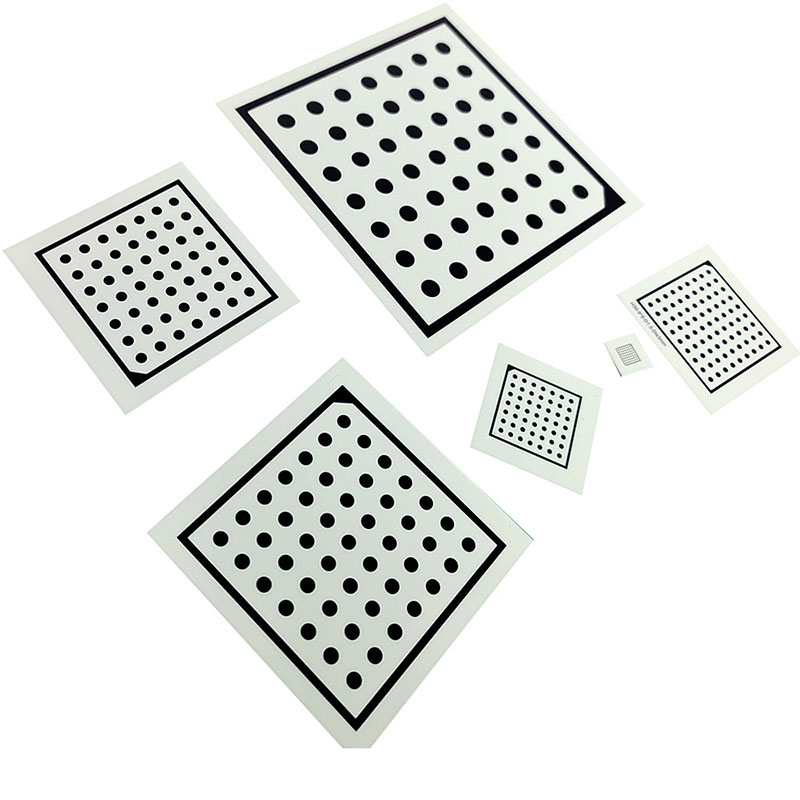

Introducing ZHUYU's Halcon10mm Circle Point Calibration Plate, a high-precision device for photogrammetric applications. With a weight of just 10g, this dark blue membrane-coated calibration plate delivers an accuracy of ±1um, making it a must-have tool for professionals in need of top-tier measuring functionality.
Featuring a pattern size of 8.125mm, and a diameter of 0.625mm, this calibration plate has 7*7 dots arranged in an array, with each dot located at a center distance of 1.25mm. Not to mention, customized support is also provided for OEM and ODM.
FAQs
1. What is the diameter and number of dots of this calibration plate?
Answer: The standard product information is available in the previously mentioned table. You can choose a suitable diameter according to your specific needs, and most dots come in 7*7 arrays. If you need a different calibration array, please don't hesitate to consult our business manager.
2. What are the overall dimensions of this calibration board?
Answer: To find out the overall dimensions of this calibration board, please contact our business manager and provide them with the dimensions you require.
3. What is the minimum order quantity?
Answer: The minimum order quantity is 1.
4. How long does it take to receive the goods?
Answer: Typically, it takes 5-20 working days, with arrival times varying according to different countries and regions.
5. What is the delivery time for standard products?
Answer: For standard products, we can deliver up to 10 units within 48 hours. If you require more, kindly consult with our business manager.
