The calibration plate is, in essence, a sophisticated geometric model that incorporates a fixed spacing pattern array. Utilizing this innovative technology, a camera takes an image through a completely flat plate that possesses a fixed spacing pattern array, which is scientifically known as the calibration plate. Thereafter, the camera employs a precise calibration algorithm that utilizes the captured image's geometric data, which serves to generate an accurate model of the image, thereby yielding high-precision measurement and reconstruction results. This approach helps to correct lens distortion, thereby enhancing the overall accuracy of image measurement and photogrammetry within machine vision applications. Overall, this cutting-edge solution is guaranteed to enhance image quality while simplifying the measurement process, making it an absolute must-have for industries that rely heavily upon visual data.
Feature:
Only select products are displayed in the table. If you require additional products, please consult our customer service team.
Overview:
Key Details
Customizable Support: OEM, ODM, OBM
Place of Origin: Zhejiang, China
Brand Name: ZHUYU
Model Number: Halcon10mm

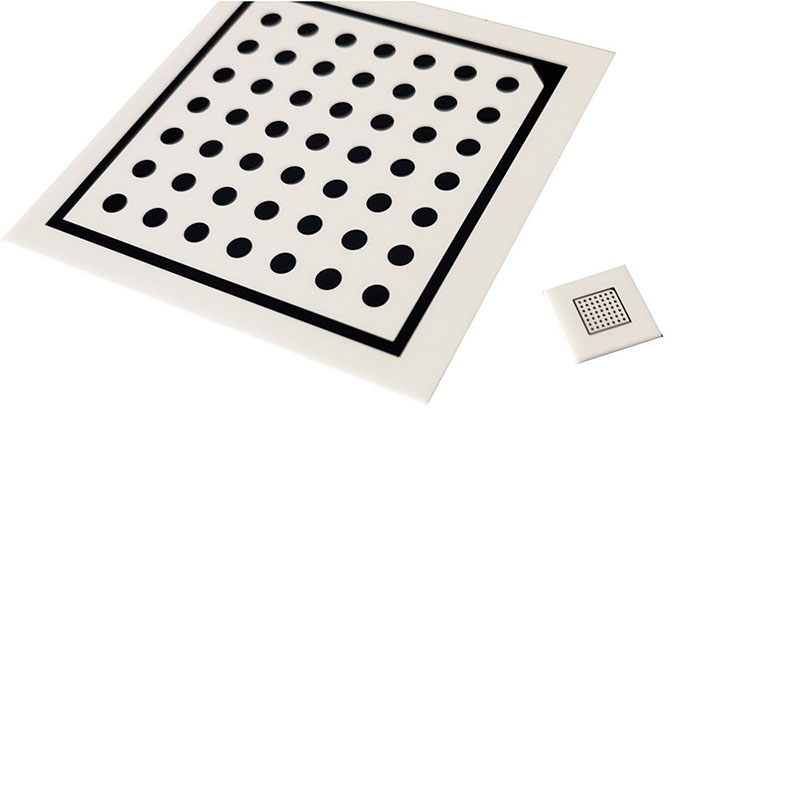

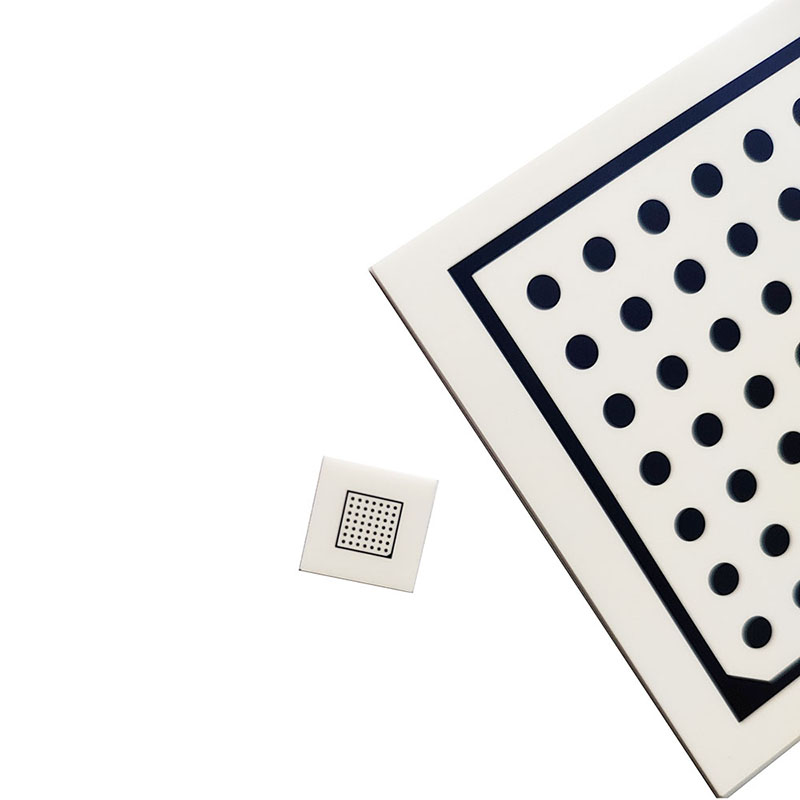

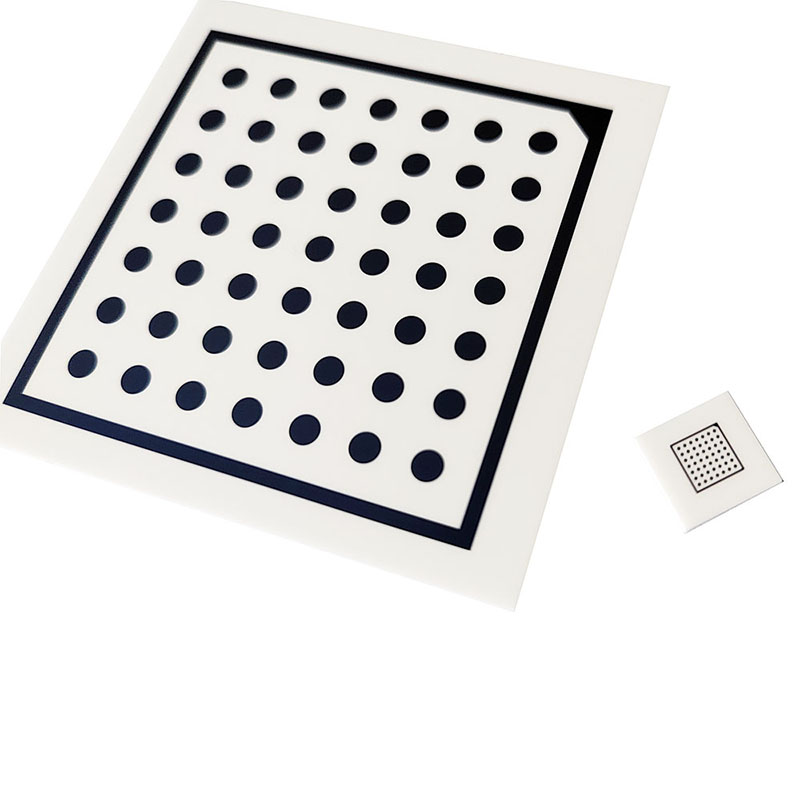

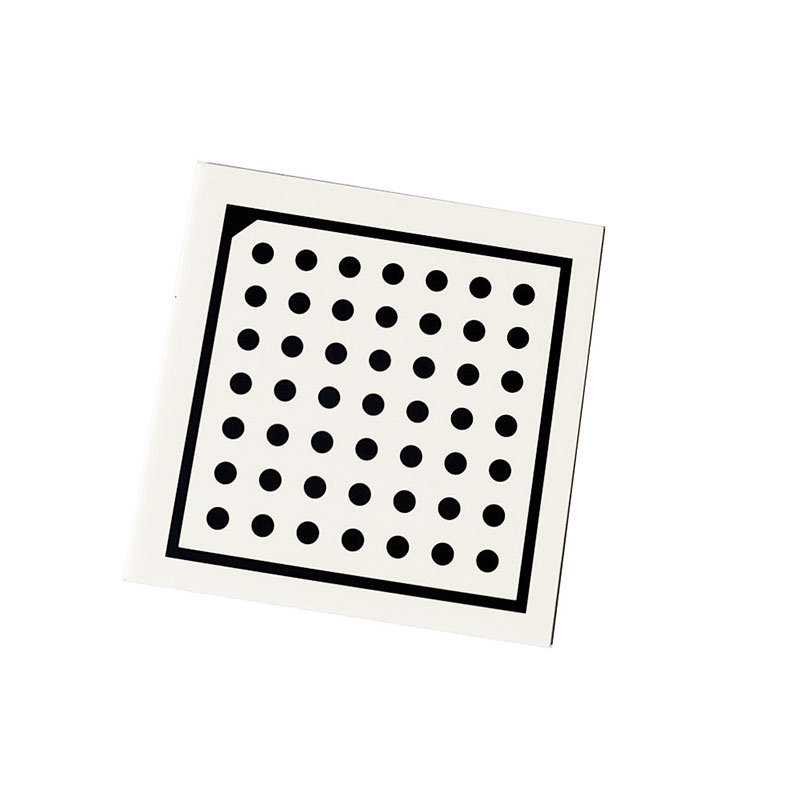

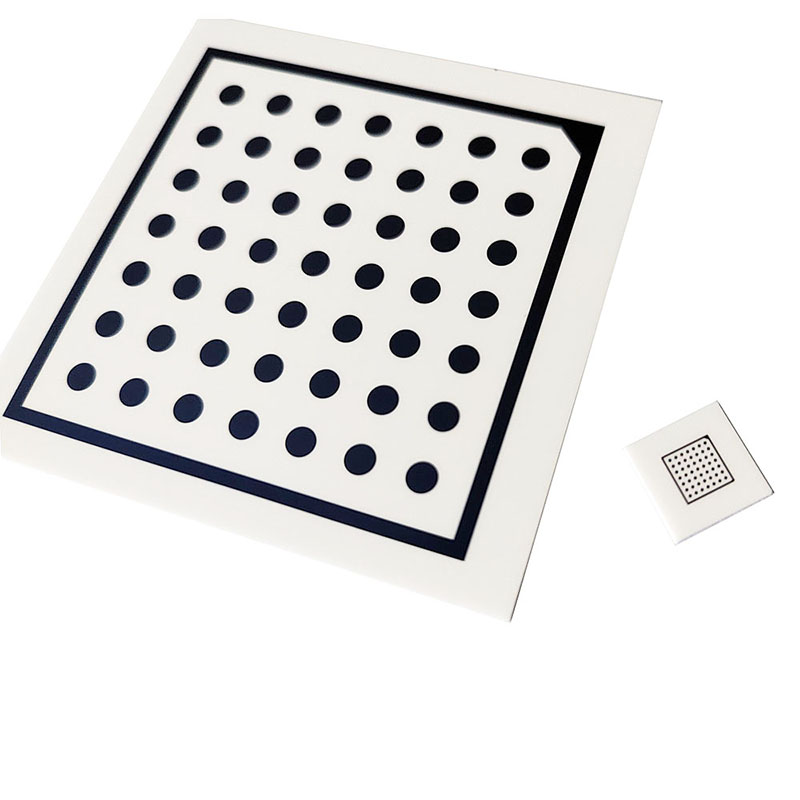

Product Name: Circle Point Calibration Plate
Application: Photogrammetry
Weight: 10g
Accuracy: ±1um
Membrane Color: Dark Blue
Function: Measure
Pattern Size: 8.125mm
Diameter: 0.625mm
Center Distance: 1.25mm
Number of Dots: 7*7
Exhibition Photos
Customer FAQ:
1. What size calibration board can you customize and what level of precision is achievable?
We offer a range of dimensions and precision levels. Learn more and contact your business manager for further information.
2. My camera's field of vision is 200*200mm. What size calibration plate should I choose?
We recommend selecting a calibration plate size between 1/3 to 2 times the field of vision of your camera or microscope. Ultimately, it is up to the user to determine the appropriate size based on their specific needs.
3. Where do you deliver, and can you customize the delivery destination to meet my needs?
Delivery destination is negotiable depending on your specific situation.
4. What format of drawings do you accept?
Drawings in CAD/CDR format are acceptable.
5. How can I place an order with you?
We offer a variety of ordering options, including traditional trade, international contracts, direct payment, or agent representation. Depending on the specific situation, the best option can be negotiated.
